A000073 | Arduino
Arduino Board Uno SMD REV3 A000073
Unit Price (€ / pc.)
24.1570 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
24.16 € *
Price list
Quantity
Price per unit*
1 pcs.
24.1570 €
10 pcs.
23.6215 €
50 pcs.
20.5275 €
*incl. VAT plus shipping costs
Subject to prior sale
Arduino Board Uno Rev3 SMD, A000073, Arduino

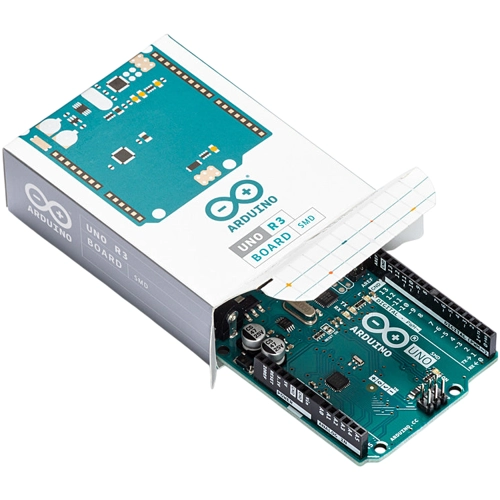

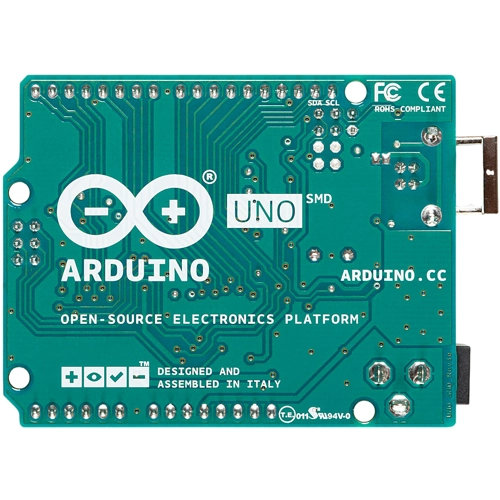

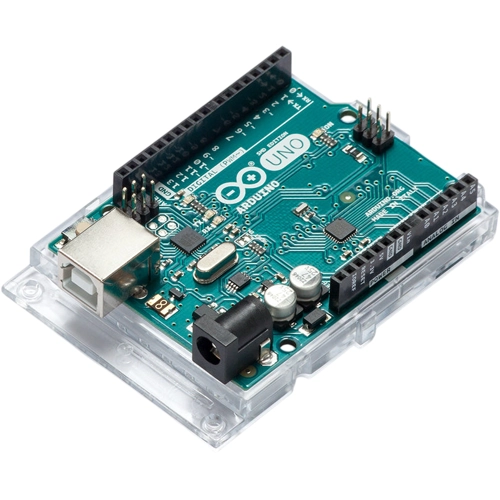

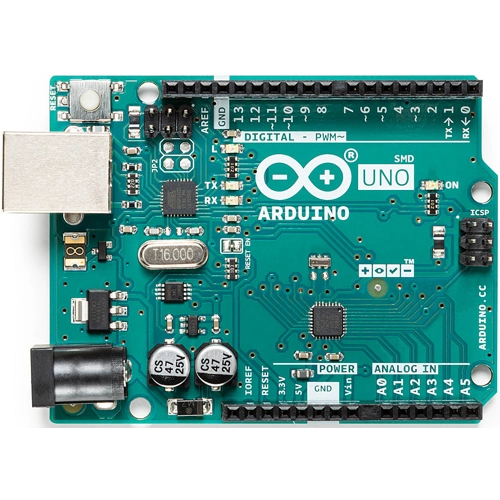

The Arduino Uno Rev3 SMD is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | extension board | |
| Interfaces | USB | |
| Processor core | ATmega328P | |
| MPU interface | UART, SPI, I²C, PWM, analogue | |
| IC controller/driver | ATmega16u2 | |
| Memory size | 32 KB | |
| Connection | USB, power jack, ICSP header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733080 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Electrical equipment take-back |  |
