A000057 | Arduino
Arduino Board Leonardo with Headers A000057
Unit Price (€ / pc.)
22.015 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
22.02 € *
Price list
Quantity
Price per unit*
1 pcs.
22.015 €
10 pcs.
21.539 €
50 pcs.
18.683 €
*incl. VAT plus shipping costs
Subject to prior sale
Arduino Board Leonardo, A000057, Arduino

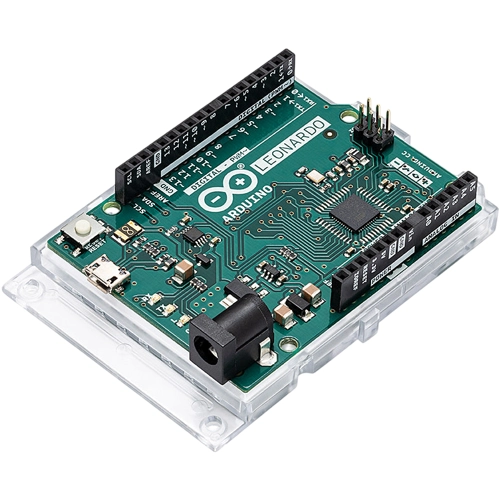

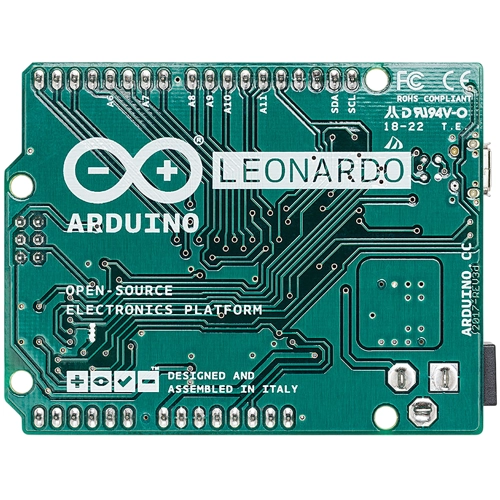

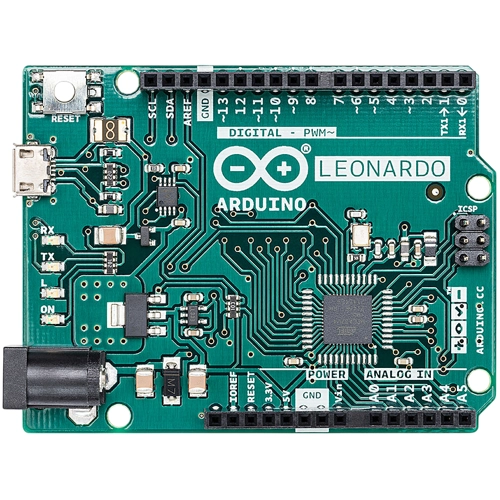

The Arduino Leonardo is a microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | extension board | |
| Interfaces | USB | |
| Processor core | ATmega32u4 | |
| MPU interface | UART, I²C, SPI, PWM, analogue | |
| Memory size | 32 KB | |
| Connection | micro USB, power jack, ICSP header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 84733080 |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
