Arduino Board UNO Media Carrier, ASX00083, Arduino

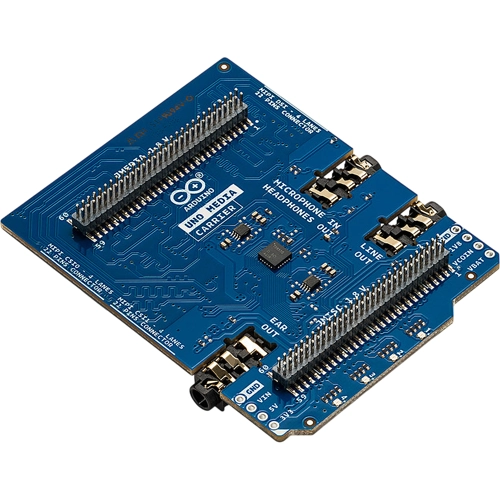

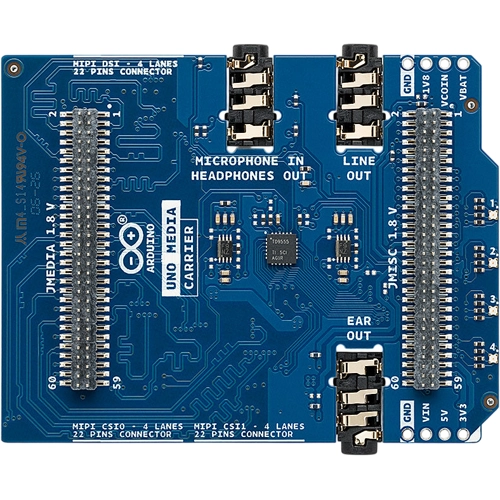

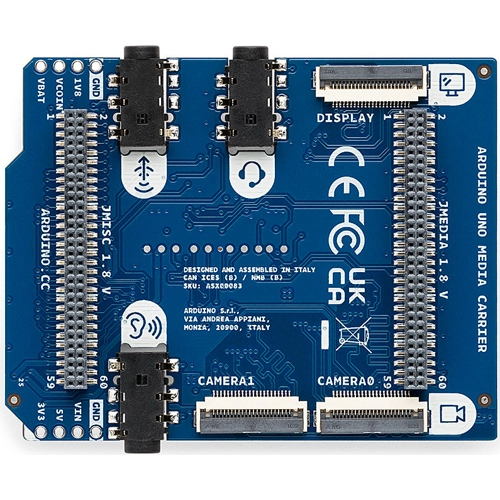

Extend the multimedia capabilities of UNO Q and VENTUNO Q by enabling advanced vision, display, and audio applications with plug-and-play simplicity. UNO Media Carrier connects to the board through the JMEDIA and JMISC high-speed connectors - both passthrough, to keep all pins available for additional modules or carriers. Equipped with two MIPI CSI connectors for standard 22-pin MIPI CSI 4 lanes cameras (like Raspberry Pi cameras), it opens the door to dual-camera computer vision projects, from stereo depth mapping to multi-angle image capture. A MIPI DSI interface provides compatibility with 22-pin 4 lanes MIPI DSI displays, making it easy to add rich, interactive visual output to your projects without additional adapters. For audio, UNO Media Carrier includes three dedicated 3.5 mm jacks: one combined microphone input and headphone output for flexible audio capture and monitoring, one line out for connecting to amplifiers or powered speakers, and one ear out enabling Class-AB differential earpiece output. Together, these interfaces turn your UNO Q into a complete edge multimedia hub, ideal for AI-powered kiosks, object tracking, interactive installations, and more.
