SQ96DE 60A | AMS

Name: Panel measuring device, rotary iron measuring device, class 1.5, 60 A, AMS SQ96DE 60A
Brand: AMS
SKU: 15K416
Availability: InStock

Panel measuring device, rotary iron measuring device, class 1.5, 60 A, AMS SQ96DE 60A

Order No.: 15K416

EAN: 4099891453527

MPN:

SQ96DE 60A

Series: SQ 96 DE

Image may differ

Key Specification:

Product type panel measuring device

Version rotary iron measuring device, class 1.5

Min. current 0 A

Max. current 60 A

AC or DC measurement possible AC

Show 7 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

91.035 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

91.04 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

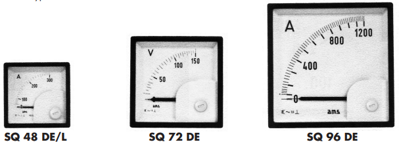

Display instrument, SQ96DE 60A, AMS

Indicating instruments, class 1.5 moving iron instrument with magnetic shielding. For AC current/voltage. Square panel mount housing to DIN 43700. Black 96 x 96 mm slim line frame. Housing: polycarbonate (self-extinguishing). With removable standard scale. Snap-on mounting. Panel cut-out: 92 x 92 mm.

Technical specifications

Filter	Property	Value
	Product type	panel measuring device
	AC or DC measurement possible	AC
	Min. current	0 A
	Width	96 mm
	Connection	screw connection
	Assembly	snap-in
	Max. current	60 A
	Version	rotary iron measuring device, class 1.5
	Height	96 mm
