SQ96DE 15A | AMS

Display instrument, 15 A, Front panel, Moving-iron mechanism

AMS
default L
front L
default S
front S
Images may differ
Order No.:  15K410
Manufacturer:  AMS
Manufacturer SKU: SQ96DE 15A
Manufacturer series:  SQ96
EAN: 4099891453497
about the green icons
Total price
( 32.9392 € * / pcs.)
32.94 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1 pcs.
32.9392 €
5 pcs.
31.3446 €
10 pcs.
29.6429 €
*incl. VAT plus shipping costs
Add to Cart Show 6 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Product by AMS at Bürklin Elektronik

Display instruments, type AMS SQ 96 DE.

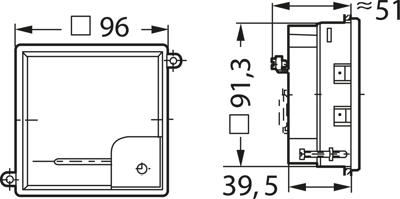

Class 1.5 moving iron instrument with magnetic shielding. For AC current/voltage. Square control panel mount housing to DIN 43700. Black 96 x 96 mm slim-line frame; Housing: polycarbonate (self-extinguishing). With standard removable scale. Snap-on mount. Control panel cutout: 92 x 92 mm

Type: 15 A
Technical specifications
AC or DC measurement possible AC
Connection screw connection
Width 96 mm
Height 96 mm
Max. current 15 A
Assembly front panel mounting
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
AC or DC measurement possible
Width
Unit
Height of cut-out
Unit
Height
Unit
Assembly
Connection
Width of cut-out
Unit
Max. current
Unit
Installation depth
Unit
1 item in 6 variations
*incl. VAT plus shipping costs
Item description
Price list
Total
AC or DC measurement possible
Width
Height of cut-out
Height
Assembly
Connection
Width of cut-out
Max. current
Installation depth
Display instrument, 40 A, Front panel, Moving-iron mechanism
Display instrument, 40 A, Front panel, Moving-iron mechanism
Order No.:
 15K414
Manufacturer:
 AMS
Manufacturer SKU:
 SQ96DE 40A
1 pcs.
60.8685 €
60.87 € *
Currently not in stock, we will order for you
AC
96 mm
96 mm
snap-in
screw connection
40 A
Display instrument, 4 A, Front panel, Moving-iron mechanism
Display instrument, 4 A, Front panel, Moving-iron mechanism
Order No.:
 15K404
Manufacturer:
 AMS
Manufacturer SKU:
 SQ96DE 4,0A
1 pcs.
27.9293 €
27.93 € *
Currently not in stock, we will order for you
AC
96 mm
96 mm
snap-in
screw connection
4 A
Display instrument, 10 A, Front panel, Moving-iron mechanism
Display instrument, 10 A, Front panel, Moving-iron mechanism
Order No.:
 15K408
Manufacturer:
 AMS
Manufacturer SKU:
 SQ96DE 10A
1 pcs.
34.4029 €
5 pcs.
30.9876 €
10 pcs.
27.5723 €
34.40 € *
Available: 10 pcs.
AC
96 mm
91.8 mm
96 mm
snap-in
screw connection
91.8 mm
10 A
39.5 mm
Display instrument, 25 A, Front panel, Moving-iron mechanism
Display instrument, 25 A, Front panel, Moving-iron mechanism
Order No.:
 15K412
Manufacturer:
 AMS
Manufacturer SKU:
 SQ96DE 25A
1 pcs.
60.8685 €
60.87 € *
Currently not in stock, we will order for you
AC
96 mm
96 mm
snap-in
screw connection
25 A
Display instrument, 2.5 A, Front panel, Moving-iron mechanism
Display instrument, 2.5 A, Front panel, Moving-iron mechanism
Order No.:
 15K402
Manufacturer:
 AMS
Manufacturer SKU:
 SQ96DE 2,5A
1 pcs.
33.6651 €
5 pcs.
32.0824 €
10 pcs.
30.3688 €
33.67 € *
Currently not in stock, we will order for you
AC
96 mm
96 mm
snap-in
screw connection
2.5 A
Display instrument, 15 A, Front panel, Moving-iron mechanism
Display instrument, 15 A, Front panel, Moving-iron mechanism
Order No.:
 15K410
Manufacturer:
 AMS
Manufacturer SKU:
 SQ96DE 15A
1 pcs.
32.9392 €
5 pcs.
31.3446 €
10 pcs.
29.6429 €
32.94 € *
Currently not in stock, we will order for you
AC
96 mm
96 mm
front panel mounting
screw connection
15 A
