2-2314846-0 | AMP

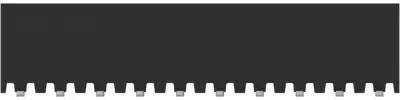

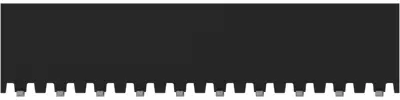

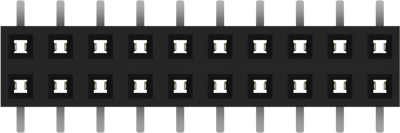

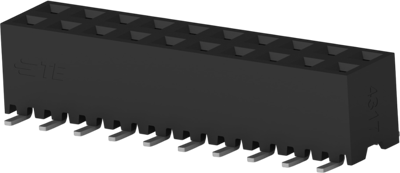

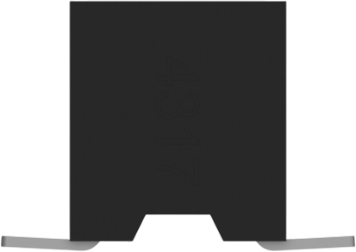

Socket header, 20 pole, pitch 2 mm, straight, black, 2-2314846-0
Unit Price (€ / pc.)
4.3197 € *
Available in 5 Days: 2,092 pcs. - if ordered today
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
10 pcs.
4.0222 €
25 pcs.
3.7485 €
50 pcs.
3.4034 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Mount Receptacle, 2-2314846-0, TE Connectivity
PCB Mount Receptacle, Vertical, Board-to-Board, 20 Position, 2 mm Centerline, Gold (Au), Surface Mount, Signal, Black, Tube, AMPMODU 2 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | Yes | |
| Version | socket header | |
| Connection | solder connection | |
| Number of rows | 2 | |
| Contact type | socket | |
| Rated voltage | 125 V | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Pin number | 20 pole | |
| Grid | 2 mm | |
| Colour | black | |
| Rated current | 2 A | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
