1-794615-2 | AMP

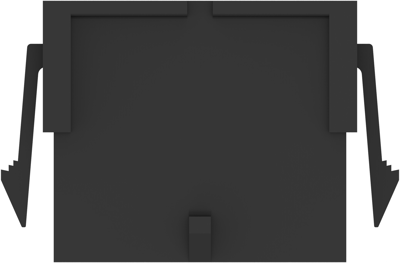

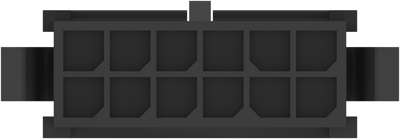

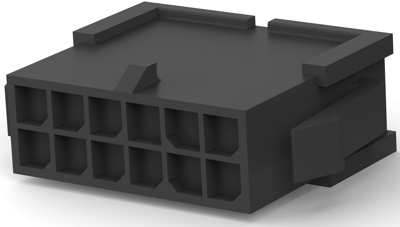

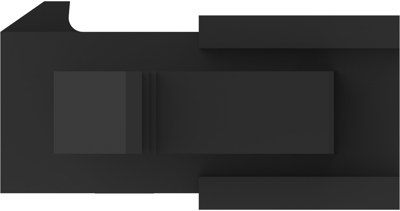

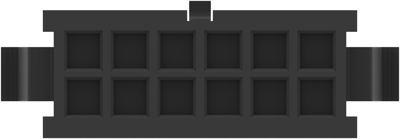

Plug housing, 12 pole, pitch 3 mm, straight, black, 1-794615-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.8687 € *
Available: 380 pcs.
Available in 12 Days: 6,442 pcs. - if ordered today
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8687 €
10 pcs.
0.7854 €
50 pcs.
0.7497 €
100 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1-794615-2, AMP
12-Positions, Plug, Housing, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-0, 3 mm Centerline, 2 Row, 250 VAC, Wire & Cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Contact type | pin | |
| Pin number | 12 pole | |
| Grid | 3 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
