1-2314846-0 | AMP

Socket header, 10 pole, pitch 2 mm, straight, black, 1-2314846-0

Order No.: 59F824
MPN:
1-2314846-0
Series: AMPMODU

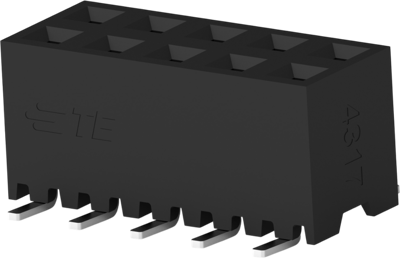

1-2314846-0 AMP PCB Connection Systems Image 1

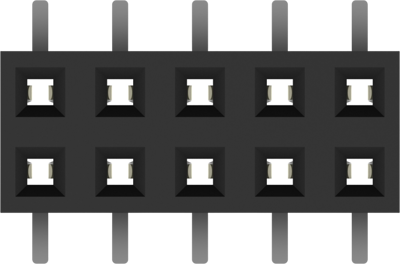

1-2314846-0 AMP PCB Connection Systems Image 2

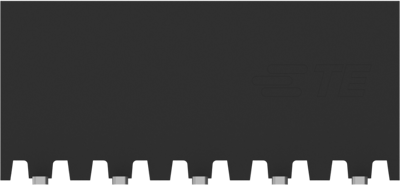

1-2314846-0 AMP PCB Connection Systems Image 3

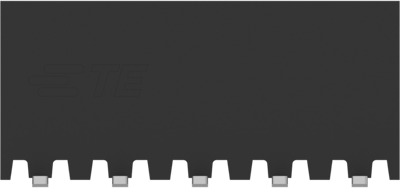

1-2314846-0 AMP PCB Connection Systems Image 4

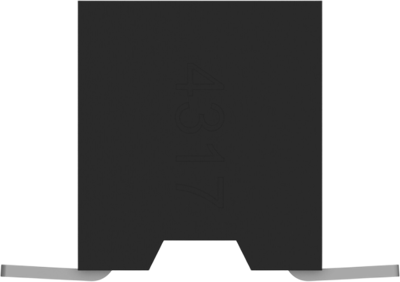

1-2314846-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.5585 € *
Available in 5 Days: 4,616 pcs. - if ordered today
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5585 €
10 pcs.
2.3800 €
50 pcs.
2.1896 €
100 pcs.
1.9873 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 1-2314846-0, TE Connectivity

PCB Mount Receptacle, Vertical, Board-to-Board, 10 Position, 2 mm Centerline, Gold (Au), Surface Mount, Signal, Black, Tube, AMPMODU 2 mm.

Technical specifications
Connection plating tin-plated
Rated voltage 125 V
Version socket header
contact surface gold-plated
Connection solder connection
Contact type socket
Rated current 2 A
Pin number 10 pole
Colour black
Type of locking Yes
Orientation straight
Number of rows 2
Grid 2 mm
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
