2337238-3 | Alcoswitch
Short-stroke pushbutton, 1 Form A (N/O), 50 mA/12 VDC, unlit , actuator (black), 1.6 N, SMD, 2337238-3
Order No.: 12G526
MPN:
2337238-3
TACT MINI GW 5.2X5.2X2 160GF
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4046 €
100 pcs.
0.3808 €
500 pcs.
0.3451 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

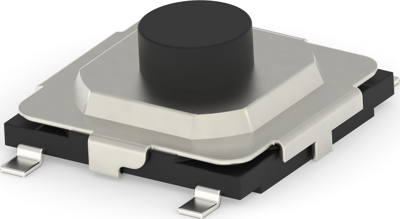

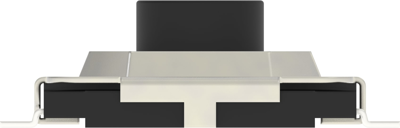

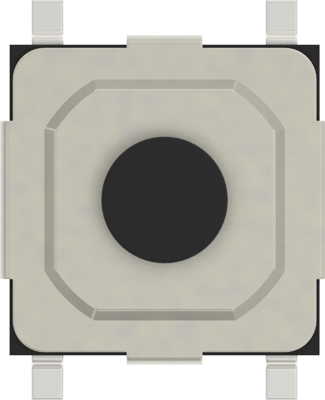

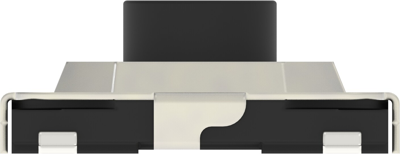

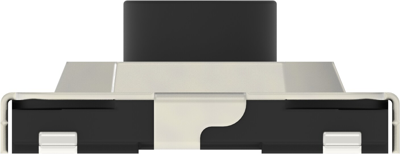

Low profile tactile switch, 2337238-3, Alcoswitch
50 mA Tactile Switch, Round Actuator, NO, Stainless Steel, Silver Contact Plating, Low Profile, 12 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | silver-plated | |
| Connection | SMD | |
| Actuator colour | black | |
| actuating force | 1.6 N | |
| Latching switching function | 1 Form A (N/O) | |
| Height | 2 mm | |
| illuminated | No | |
| Length | 5.2 mm | |
| Width | 5.2 mm | |
| Breaking capacity | 50 mA/12 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
