2331398-1 | Alcoswitch
Short-stroke pushbutton, 1 Form A (N/O), 5 mA/12 VDC, unlit , actuator (black), 35 g, SMD, 2331398-1
Order No.: 12G508
MPN:
2331398-1
DET SW6.5X3.9X6.0 GW VERT. NO AG TB
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.8449 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
10 pcs.
0.7854 €
25 pcs.
0.7378 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale

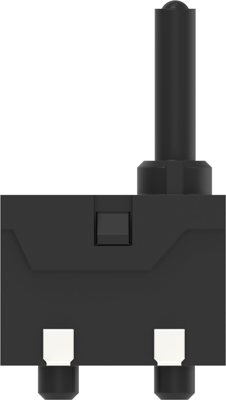

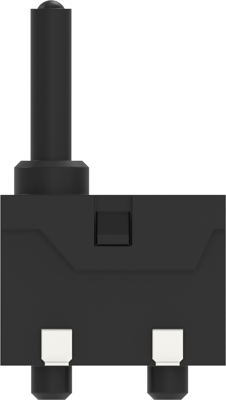

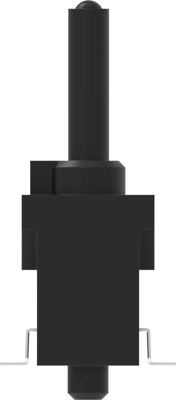

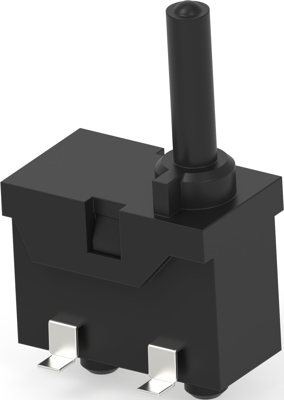

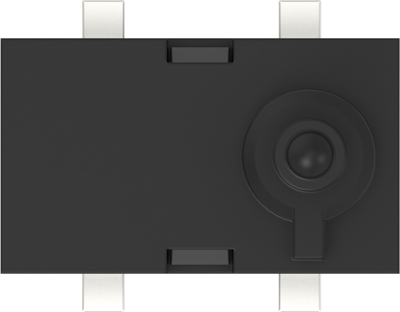

Tactile switch, 2331398-1, Alcoswitch
5 mA Tactile Switch, Extended, Top Actuator, Off (On), Stainless Steel, Silver Contact Plating.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 5 mA/12 VDC | |
| illuminated | No | |
| Actuator colour | black | |
| Contact material | silver-plated | |
| Connection | SMD | |
| actuating force | 35 g | |
| Length | 6.5 mm | |
| Width | 3.9 mm | |
| Height | 10.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
