5FLR | Aero-Motive

Retractor, 5FLR, load capacity (min/max) 0.4 to 2.3 kg, stroke 2.4 m, with locking, 1301750016

Order No.: 12P6653
EAN: 4099891450472
MPN:
5FLR
1301750016
Series: F

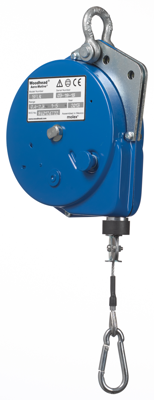

5FLR Aero-Motive Spring Balancers Image 1

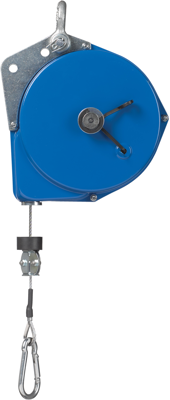

5FLR Aero-Motive Spring Balancers Image 2
Image may differ
Unit Price (€ / pc.)
228.4919 € *
Available: 59 pcs.
Next delivery: 150 pcs. on 2025-05-30
Leadtime: 17 Weeks **
Total Price:
228.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
228.4919 €

Retractor, 1301750016, Aero-Motive

Aero-Motive Retractor with Ratchet Lock, Weight Range 0.5-2.3 kg (1.0-5.0 lb), 2.40 m (8.0') Travel

Retractors are designed to retract a tool or load when no force is applied on it. Constant downward force has to be applied in order to keep the suspended tool/load in position. The torque output of the rewind spring increases as the cable is pulled out of the unit, retracting the suspended tool/load to the uppermost adjusted position when released.

Field proven Aero-Motive® retractors feature power springs for excellent life cycles and ergonomics in virtually any industrial work space

Features

  • New and improved power springs
  • Provides excellent ergonomics and life cycles
  • Durable stranded-steel aircraft cable features adjustable cable stop
  • Increased durability Allows tools to be set at different positions/ heights
Technical specifications
Version retractor
Stroke 2.4 m
Rope Diameter 2.38 mm
Weight 2.2 kg
Max Load capacity 2.3 kg
Min Load capacity 0.4 kg
Spring fracture safety device No
Rope pullout 2.4 m
Manual locking No
Fall protection No
Suspension Rope galvanized
Locking with locking
Shell Material sheet metal enclosure
Logistics
Country of origin DE
Customs tariff number 84253900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform not_relevant
