22FLSR | Aero-Motive

Retractor, 22FLSR, load capacity (min/max) 3.6 to 10 kg, stroke 2.4 m, with locking, 1301750065

Order No.: 12P6660
EAN: 4099891450540
MPN:
22FLSR
1301750065
Series: F

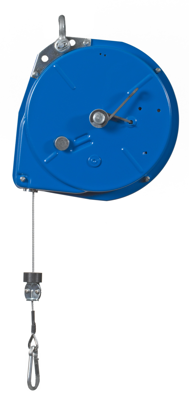

22FLSR Aero-Motive Spring Balancers Image 1

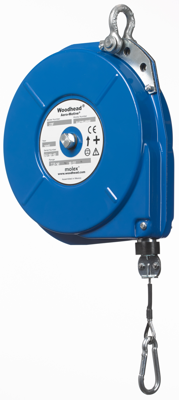

22FLSR Aero-Motive Spring Balancers Image 2
Image may differ
Unit Price (€ / pc.)
302.5813 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
302.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
302.5813 €

Retractor, 1301750065, Aero-Motive

Retractors are designed to retract a tool or load when no force is applied on it. Constant downward force has to be applied in order to keep the suspended tool/load in position. The torque output of the rewind spring increases as the cable is pulled out of the unit, retracting the suspended tool/load to the uppermost adjusted position when released.

Technical specifications
Min Load capacity 3.6 kg
Version retractor
Weight 4.5 kg
Suspension Rope galvanized
Stroke 2.4 m
Rope pullout 2.4 m
Shell Material sheet metal enclosure
Manual locking No
Max Load capacity 10 kg
Locking with locking
Fall protection No
Spring fracture safety device Yes
Logistics
Customs tariff number 84311000
Country of origin DE
Compliance
SVHC free Yes
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
