22FLRSC | Aero-Motive

Retractor, 22FLRSC, load capacity (min/max) 3.6 to 10 kg, with locking, 1301750050

Order No.: 12P6657
EAN: 4099891450519
MPN:
22FLRSC
1301750050
Series: F

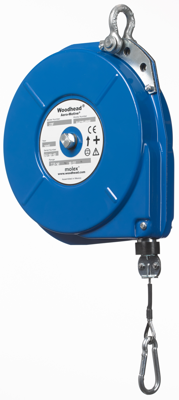

22FLRSC Aero-Motive Spring Balancers Image 1

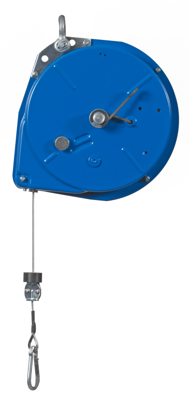

22FLRSC Aero-Motive Spring Balancers Image 2
Image may differ
Unit Price (€ / pc.)
308.7693 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
308.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
308.7693 €

Retractor, 1301750050, Aero-Motive

Aero-Motive Heavy Duty Retractors, Weight Range 3.6-10.0 kg (8.0-22.0 lb), with Ratchet Lock, 2.40 m (8.0') Travel

Retractors are designed to retract a tool or load when no force is applied on it. Constant downward force has to be applied in order to keep the suspended tool/load in position. The torque output of the rewind spring increases as the cable is pulled out of the unit, retracting the suspended tool/load to the uppermost adjusted position when released.

Field proven Aero-Motive® retractors feature power springs for excellent life cycles and ergonomics in virtually any industrial work space

Features

  • New and improved power springs
  • Provides excellent ergonomics and life cycles
  • Durable stranded-steel aircraft cable features adjustable cable stop
  • Increased durability Allows tools to be set at different positions/ heights
Technical specifications
Min Load capacity 3.6 kg
Version retractor
Weight 4.5 kg
Suspension Rope galvanized
Rope pullout 2.4 m
Shell Material sheet metal enclosure
Manual locking No
Max Load capacity 10 kg
Locking with locking
Fall protection Yes
Spring fracture safety device No
Logistics
Country of origin DE
Compliance
SVHC free Yes
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
