10FLSR | Aero-Motive

Retractor, 10FLSR, load capacity (min/max) 1.8 to 4.5 kg, stroke 2.4 m, with locking, 1301750064

Order No.: 23P6958
EAN: 4099891452315
MPN:
10FLSR
1301750064
Series: F

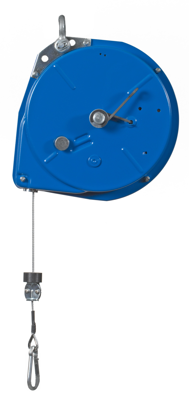

10FLSR Aero-Motive Spring Balancers Image 1

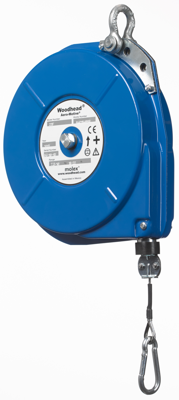

10FLSR Aero-Motive Spring Balancers Image 2
Image may differ
Unit Price (€ / pc.)
302.5813 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
302.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
302.5813 €

Retractor, 1301750064, Aero-Motive

Retractor 10FLSR Aero-Motive, Weight Range 4-10 lb/1.8-4.5 kg, Cable Travel 8 ft/2.4 m

Aero-Motive 10/22FLS and 10/22FLSR retractors offer the exact same performance as 10/22F and 10/22FLR, but are equipped with Automatic Safety Lock. These retractors meet DIN15112 standards, which require arresting a load in place should the unit lose tension or in the event of a power spring failure.

Features

  • Automatic Safety Lock: Yes
  • Manual Safety Lock: No
  • Upper Mount: Fixed - Shackle & Cotter Pin
  • External Tension Adjustment: Shaft and Spring Friction Clutch
  • Ratchet Lock (ON/OFF): Model FLSR
  • Secondary Support: Safety Cable (Optional)
  • Serviceable: Yes with Aero-Motive Repair Parts or Kits
  • Sheet-Metal Housing to Protect Spring and Drum
  • Rubber Shock Absorber
  • Adjustable Cable Stop
  • Snap Hook for Easy Tool Attachment or Removal
Technical specifications
Min Load capacity 1.8 kg
Version retractor
Weight 4.5 kg
Suspension Rope galvanized
Stroke 2.4 m
Rope pullout 2.4 m
Shell Material sheet metal enclosure
Manual locking No
Max Load capacity 4.5 kg
Locking with locking
Fall protection No
Spring fracture safety device Yes
Logistics
Customs tariff number 84313100
Country of origin DE
Compliance
SVHC free not_specified
RoHS conform not_relevant
