GPTCRM01 | ZF Switches and Sensors

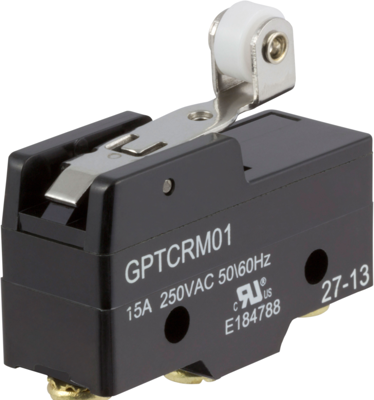

Micro Snap-action switche, On-On, screw connection, short roller lever, 1.2 N, 15 A/250 VAC

Order No.: 13G1071
EAN: 4099889212488
MPN:
GPTCRM01
Series: GP
ZF Switches and Sensors
default L
Image may differ
Unit Price (€ / pc.)
12.9472 € *
Available: 14 pcs.
Leadtime: 18 Weeks **
Total Price:
12.95 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9472 €
10 pcs.
11.3883 €
50 pcs.
10.6148 €
*incl. VAT plus shipping costs
**Subject to prior sale

Snap-action microswitches, type Cherry GPTC.

Universal switch with very small travel differential; Switching action: CO. Breaking power: 15 A/250 VAC. Contacts: silver alloy. Connections: CuZn. Function: momentary action. Operating temperatures: –5.0 to +40 °C VDE/0 to +55 ° UL. Termination: M4 screw terminals. Certifications: VDE, UL.

With auxiliary actuator and roll.

Type: GPTCRM01, leaf spring lever with roll

Technical specifications
Connection screw connection
Actuator short roller lever
actuating force 1.2 N
Shell Material phenolic resin
Latching switching function On-On
Breaking capacity 15 A/250 VAC
Switching point 17.6 mm ±0.2 mm
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
actuating force
Actuator
Breaking capacity
Shell Material
Latching switching function
Connection
Switching point
1 item in 3 variations
