DB1C-C1RB | ZF Switches and Sensors

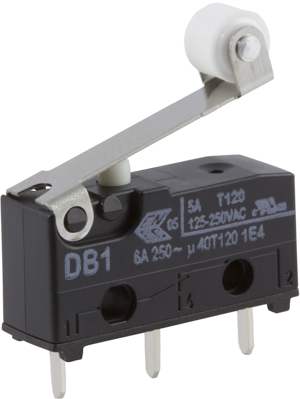

Subminiature snap-action switch, On-On, plug-in connection, roller lever, 0.65 N, 5 A/125 VAC, 1 A/48 VDC, IP50
Unit Price (€ / pc.)
2.1539 € *
Available: 513 pcs.
Leadtime: 2 Weeks **
Total Price:
2.15 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1539 €
25 pcs.
1.9992 €
100 pcs.
1.8326 €
*incl. VAT plus shipping costs
**Subject to prior sale
Subminiature snap-action switch series DB, type Cherry DB1C-.
type: DB1C-C1RB
with roll, straight short 2.5 mm, and high switching accuracy: changeover contact.
Connection: 1.3 x 0.5 mm PCB terminals
breaking capacity: 6.0 A/250 VAC (EN 61058), 5.0 A/125 to 250 VAC (UL 1054),
contacts: AgNi,
leakage current resistance: PTI 175.
Operating temperatures: - 40 to +120 °C.
Connections: copper zinc, silver-plated,
electrical useful life: 50000 switching cycles,
certifications: ENEC, UL, CSA.
Switch actuating force: maximum 65 cN.
Action point: 15.8 mm (±1.3).
Pretravel: maximum 4.0 mm.
Overtravel: minimum 2.0 mm.
Travel difference: maximum 0.5 mm.
Home position: maximum 19 mm.
Technical specifications
| Connection | plug-in connection | |
| Design | straight | |
| Actuator | roller lever | |
| actuating force | 0.65 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 5 A/125 VAC, 1 A/48 VDC | |
| Switching point | 15.8 mm ±1.3 mm | |
| Protection class | IP50 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
