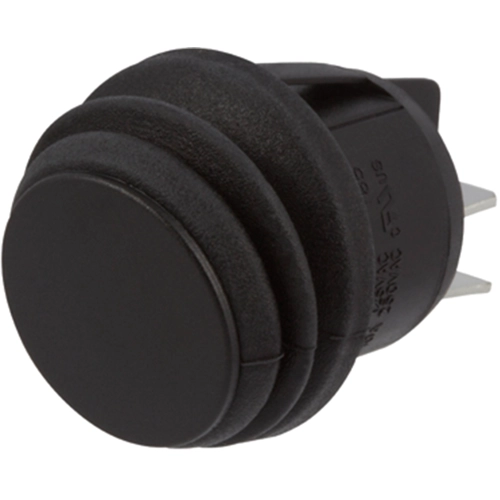

KDH3ANA1BBB | ZF Switches and Sensors
Rocker switch, black, 2 pole, On-Off, off switch, 16 A/125 VAC, 10 A/250 VAC, IP65, unlit, unprinted
Unit Price (€ / pc.)
4.2602 € *
Available: 259 pcs.
Leadtime: 14 Weeks **
Total Price:
4.26 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2602 €
10 pcs.
3.7366 €
100 pcs.
3.2844 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rocker switches, type Cherry KDH3.
Double-pole; Breaking power: 16 A/ 125 VAC, 10 A/ 250 VAC. Dielectric strength: 1500 VAC. Contact resistance: max. 0,05 ohm. Termination: 4.8 mm push-in connection. Degree of protection: IP 56. Certifications: VDE, UL. Ambient temperatures: max. +85 °C.
Technical attributes (type, switching function, color, version): KDH3ANA1BBB, ON-OFF, black, not illuminated
Technical specifications
| Connection | plug-in connection | |
| Design | round | |
| Printed | No | |
| illuminated | No | |
| Installation diameter | 20 mm | |
| Actuator colour | black | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Latching switching function | off switch | |
| Breaking capacity | 16 A/125 VAC, 10 A/250 VAC | |
| Shift position | On-Off | |
| Protection class | IP65 | |
| Wall thickness | 0.75 to 2.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
