FPS009-2409-0 | YAMAICHI

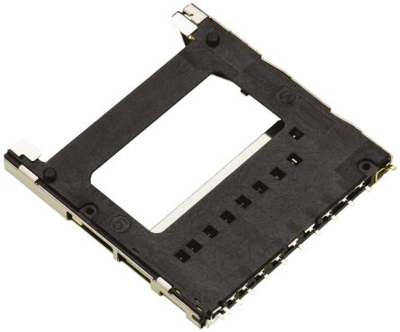

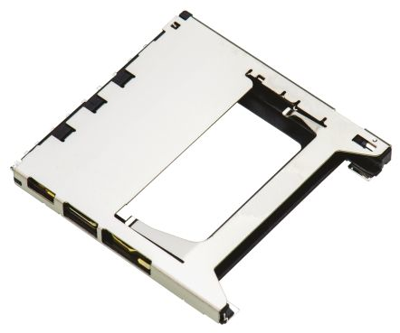

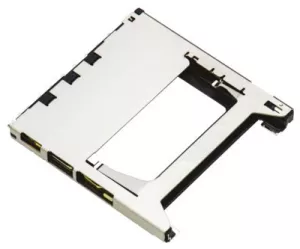

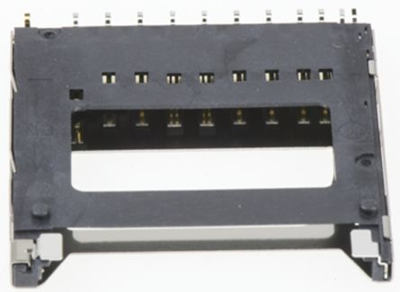

MultiMedia/SecureDigitalCard connector FPS009-2405-0, with push-in/push out ejection

default S
front S
side S
back S
default L
front L
side L
back L
Total price
(4.01 € * / pcs.)
0.00 €
Next delivery: 850 pcs. on 2022-11-09
Quantity
Price per piece*
1 pcs.
4.01 €
10 pcs.
3.61 €
50 pcs.
3.19 €
100 pcs.
2.70 €
*incl. VAT plus shipping costs
Description

Product by YAMAICHI at Bürklin Elektronik

Card Connectors, YAMAICHI

MultiMedia /SecureDigitalCard connectors, type Yamaichi FPS009-.

For MMC and SD cards, with card recognition and write-protection switch; Contacts (solder terminals): Ni-Au (Ni-SnPb), 10000 insertion cycles. Insulation resistance: 1000 Mohm min./500 VDC. Test voltage: 500 V ACrms/1.0 minute. Contact resistance: max. 100 mohm at 1.0 mA/20 mV. Rated voltage: 250 VRMS AC. Rated current: 0.5 A. Temperature range: –25 to +85 °C. With single ejector.

With push-in/push-out ejection, type FPS009-.

Type: 2405–0, MultiMedia/SecureDigital card connector

Technical specifications
Number of rows 1
Version plug
Pin number 9 pole
Connector SD
Type of locking angled
Logistics
Country of origin JP
Customs tariff number 85369095
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 7/16/19
SVHC free Yes
Download
Technical Data Sheet - EN
Technical Data Sheet
Variations
1 item with 2 variations
Item description
Price list
Total
Connector
Version
Type of locking
Pin number
Number of rows
MultiMedia/SecureDigitalCard connector FPS009-2405-0, with push-in/push out ejection
Order No.:
 51F8530
Manufacturer:
 YAMAICHI
Manufacturer SKU
 FPS009-2409-0
1 pcs.
4.01 €
10 pcs.
3.61 €
50 pcs.
3.19 €
100 pcs.
2.70 €
0.00 € *
Next delivery: 850 pcs. on 2022-11-09
SD
plug
angled
9 pole
1
MultiMedia /SecureDigitalCard connector FPS009-3001, with simple ejection
Order No.:
 51F8520
Manufacturer:
 YAMAICHI
Manufacturer SKU
 FPS009-3001
1 pcs.
4.05 €
10 pcs.
3.63 €
50 pcs.
3.21 €
100 pcs.
2.73 €
4.05 € *
Available: 407 pcs.
Combo MMC/SD
socket
straight
9 pole
1
