XC7A100T-2FGG484I | Xilinx

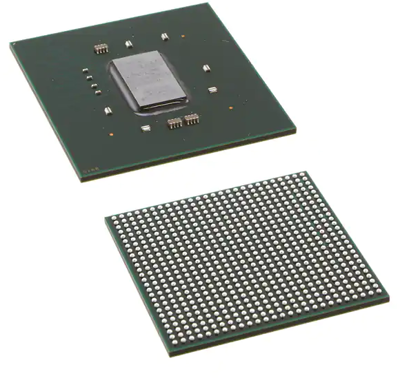

FPGA Artix-7, XC7A100T-2FGG484I, Xilinx

AMD Artix 7 FPGAs are available in -3, -2, -1, -1LI, and -2L speed grades, with -3 having the highest performance. The Artix 7 FPGAs predominantly operate at a 1.0V core voltage. The -1LI and -2L devices are screened for lower maximum static power and can operate at lower core voltages for lower dynamic power than the -1 and -2 devices, respectively. The -1LI devices operate only at VCCINT = VCCBRAM = 0.95V and have the same speed specifications as the -1 speed grade. The -2L devices can operate at either of two VCCINT voltages, 0.9V and 1.0V and are screened for lower maximum static power. When operated at VCCINT = 1.0V, the speed specification of a -2L device is the same as the -2 speed grade. When operated at VCCINT = 0.9V, the -2L static and dynamic power is reduced.

Artix 7 FPGA DC and AC characteristics are specified in commercial, extended, industrial, expanded (-1Q), and military (-1M) temperature ranges.

Features

• Designed for low cost
• Low static and dynamic power
• Integrated Endpoint block for PCI Express designs (LXT)
• Integrated Memory Controller blocks
• Block RAM with a wide range of granularity
• Enhanced security for design protection
