XC3S50AN-4TQG144C | Xilinx

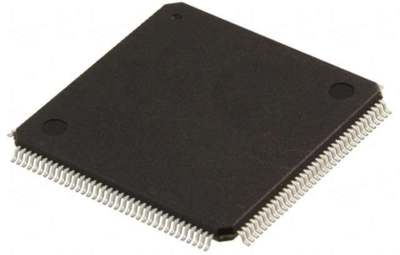

FPGA Spartan®-3AN Family 50K Gates 1584 Cells 667MHz 90nm Technology 1.2V Automotive Medical 144-Pin TQFP EP

Order No.: 66S0006
EAN: 4099879145475
MPN:
XC3S50AN-4TQG144C
Series: Spartan-3AN
Xilinx
default L
Image may differ
Unit Price (€ / pc.)
30.6544 € *
Available: 138 pcs.
Leadtime: On Request **
Total Price:
30.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
30.6544 €

FPGA, XC3S50AN-4TQG144C, Xilinx

The Spartan®-3AN FPGA family combines the best attributes of a leading edge, low cost FPGA with nonvolatile technology across a broad range of densities. The family combines all the features of the Spartan-3A FPGA family plus leading technology in-system Flash memory for configuration and nonvolatile data storage.

Features

  • The new standard for low cost nonvolatile FPGA solutions
  • Eliminates traditional nonvolatile FPGA limitations with the advanced 90 nm Spartan-3A device feature set
Technical specifications
Number of I/Os 108
Number of LABs/CLBs 176
Number of logical elements 1584
Enclosure TQFP-144
max. operating temperature 85 °C
min. operating temperature 0 °C
Assembly SMD
Voltage 1.14-1.26 V
Memory size 55.296 kbit
Logistics
Customs tariff number 85423390
MSL MSL 3
Original Packaging Tray with 60 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
