40015020 | Würth Elektronik eiSos
WE-TGF Thermal Gap Filler Pad, 40015020
Unit Price (€ / pc.)
18.6830 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
18.68 € *
Price list
Quantity
Price per unit*
1 pcs.
18.6830 €
2 pcs.
17.2669 €
3 pcs.
17.2431 €
4 pcs.
15.8270 €
5 pcs.
13.6255 €
*incl. VAT plus shipping costs
**Subject to prior sale

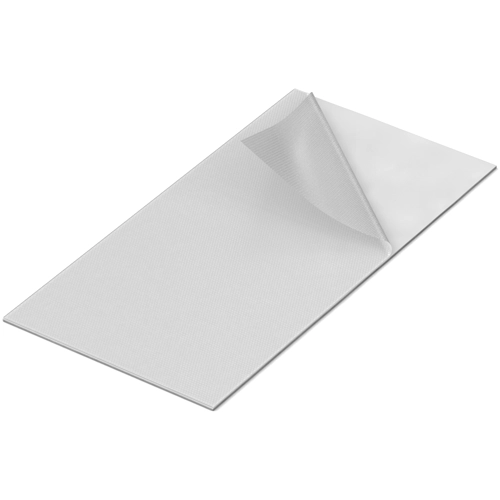

Thermal gap filler pad, 40015020, Würth Elektronik eiSos
The 40015020 thermal gap filler pad offers high electrical insulation and low thermal resistance, while also being self-adhesive through the use of silicone oil.
Features
- Soft, conforms to non-flat surfaces
- Customizable in shape
- Reinforced option for high mechanical stress applications
Applications
- Power electronics
- Audio and TV
- Communication and network
Technical specifications
Thickness | 2 mm | |
Material | silicone | |
max. operating temperature | 150 °C | |
min. operating temperature | -50 °C | |
Thermal conductivity | 5 W/mK |
Download
Logistics
Country of origin | CN |
Customs tariff number | 39209928 |
MSL | MSL 1 |
Original Packaging | Bag with 1 piece |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
