40012020 | Würth Elektronik eiSos

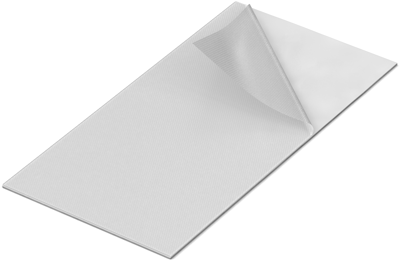

Thermal gap filler pad, 2 W/mK, silicone, (L x W) 100 x 100 mm, 40012020

Order No.: 61B1017
EAN: 4099889264678
MPN:
40012020
Series: WE-TGF
40012020 Würth Elektronik eiSos Thermal Pads
Image may differ
Unit Price (€ / pc.)
14.5656 € *
Available: 5 pcs.
Available in 5 Days: 9 pcs.
Leadtime: 7 Weeks **
Total Price:
14.57 € *
Price list
Quantity
Price per unit*
1 pcs.
14.5656 €
2 pcs.
13.4589 €
3 pcs.
13.3756 €
4 pcs.
12.1975 €
5 pcs.
10.3768 €
*incl. VAT plus shipping costs
**Subject to prior sale

Characteristics

  • High electrical insulation
  • Low thermal resistance
  • Reinforced option for high mechanical stress applications
  • Self-adhesive through silicone oil
  • Soft, conforms to non-flat surfaces

Application:

  • Power electronics
  • Audio and TV
  • Communication and network
Technical specifications
Thickness 2 mm
Width 100 mm
Length 100 mm
Thermal conductivity 2 W/mK
min. operating temperature -50 °C
Material silicone
max. operating temperature 180 °C
Logistics
Country of origin CN
Customs tariff number 39209928
MSL MSL 1
Original Packaging Bag with 1 piece
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
