150224GS73100A | Würth Elektronik eiSos

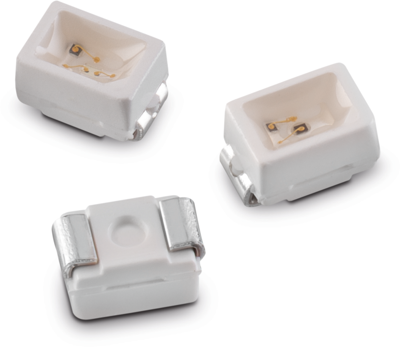

LED, SMD, 2214, green, 525 nm, 1.2 to 1.5 cd, 120°, 150224GS73100A

Order No.: 67S1163
EAN: 4099889282733
MPN:
150224GS73100A
Series: WL-SMTW
Würth Elektronik eiSos
default L
Image may differ
Print
Key Specification:
Assembly SMD
Enclosure 2214
Colour of the LED green
Light intensity min. 1.2 cd
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.2154 € *
Available: 3,000 pcs.
Leadtime: 8 Weeks **
Total Price:
0.22 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2154 €
10 pcs.
0.1999 €
100 pcs.
0.1916 €
500 pcs.
0.1833 €
1000 pcs.
0.1666 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Radiation angle 120 °
Width 1.4 mm
On-State Voltage 3.5 V
Forward Current 20 mA
Colour of the LED green
Enclosure 2214
Length 2 mm
Light intensity min. 1.2 cd
Light intensity typ. 1.5 cd
Lens clear
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Wavelength 525 nm
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85414100
MSL MSL 3
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Light intensity typ.
Wavelength
Unit:
Light intensity min.
Forward Current
Unit:
On-State Voltage
Unit:
Colour of the LED
min. operating temperature
Enclosure
Radiation angle
Width
Unit:
Length
Unit:
Lens
Assembly
max. operating temperature
1 item in 10 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Light intensity typ.
Wavelength
Light intensity min.
Forward Current
On-State Voltage
Colour of the LED
min. operating temperature
Enclosure
Radiation angle
Width
Length
Lens
Assembly
max. operating temperature
LED, SMD, 2214, blue, 470 nm, 0.28 to 0.32 cd, 120°, 150224BS73100A
LED, SMD, 2214, blue, 470 nm, 0.28 to 0.32 cd, 120°, 150224BS73100A
Order No.:
 67S1161
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224BS73100A
Available: 3,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.22 € *
1 pcs.
0.2154 €
10 pcs.
0.1999 €
100 pcs.
0.1916 €
500 pcs.
0.1833 €
1000 pcs.
0.1666 €
0.32 cd
470 nm
0.28 cd
20 mA
3.5 V
blue
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
LED, SMD, 2214, amber, 605 nm, 0.1 to 0.21 cd, 120°, 150224AS73100
LED, SMD, 2214, amber, 605 nm, 0.1 to 0.21 cd, 120°, 150224AS73100
Order No.:
 67S1159
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224AS73100
Available: 3,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.35 € *
1 pcs.
0.3487 €
50 pcs.
0.3106 €
100 pcs.
0.2523 €
500 pcs.
0.2297 €
2000 pcs.
0.2071 €
0.21 cd
605 nm
0.1 cd
30 mA
2.4 V
amber
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
LED, SMD, 2214, green, 525 nm, 1.2 to 1.5 cd, 120°, 150224GS73100A
LED, SMD, 2214, green, 525 nm, 1.2 to 1.5 cd, 120°, 150224GS73100A
Order No.:
 67S1163
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224GS73100A
Available: 3,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.22 € *
1 pcs.
0.2154 €
10 pcs.
0.1999 €
100 pcs.
0.1916 €
500 pcs.
0.1833 €
1000 pcs.
0.1666 €
1.5 cd
525 nm
1.2 cd
20 mA
3.5 V
green
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
LED, SMD, 2214, red, 625 nm, 0.28 to 0.35 cd, 120°, 150224RS73100A
LED, SMD, 2214, red, 625 nm, 0.28 to 0.35 cd, 120°, 150224RS73100A
Order No.:
 67S1164
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224RS73100A
Available: 3,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.22 € *
1 pcs.
0.2154 €
10 pcs.
0.1999 €
100 pcs.
0.1916 €
500 pcs.
0.1833 €
1000 pcs.
0.1666 €
0.35 cd
625 nm
0.28 cd
20 mA
2.4 V
red
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
LED, SMD, 2214, green, 528 nm, 0.935 to 1.2 cd, 120°, 150224GS73100
LED, SMD, 2214, green, 528 nm, 0.935 to 1.2 cd, 120°, 150224GS73100
Order No.:
 67S1162
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224GS73100
Available: 3,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.69 € *
1 pcs.
0.6902 €
50 pcs.
0.6069 €
100 pcs.
0.4927 €
500 pcs.
0.4486 €
2000 pcs.
0.4058 €
1.2 cd
528 nm
0.935 cd
30 mA
3.4 V
green
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
LED, SMD, 2214, red, 636 nm, 0.09 to 0.13 cd, 120°, 150224SS73100
LED, SMD, 2214, red, 636 nm, 0.09 to 0.13 cd, 120°, 150224SS73100
Order No.:
 67S1165
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224SS73100
Available: 3,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.43 € *
1 pcs.
0.4344 €
50 pcs.
0.3868 €
100 pcs.
0.3118 €
500 pcs.
0.2844 €
2000 pcs.
0.2570 €
0.13 cd
636 nm
0.09 cd
30 mA
2.4 V
red
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
LED, SMD, 2214, green, 570 nm, 0.04 to 0.07 cd, 120°, 150224VS73100A
LED, SMD, 2214, green, 570 nm, 0.04 to 0.07 cd, 120°, 150224VS73100A
Order No.:
 67S1166
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224VS73100A
Available: 3,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.22 € *
1 pcs.
0.2154 €
10 pcs.
0.1999 €
100 pcs.
0.1916 €
500 pcs.
0.1833 €
1000 pcs.
0.1666 €
0.07 cd
570 nm
0.04 cd
20 mA
2.6 V
green
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
LED, SMD, 2214, yellow, 586 nm, 0.25 to 0.29 cd, 120°, 150224YS73100
LED, SMD, 2214, yellow, 586 nm, 0.25 to 0.29 cd, 120°, 150224YS73100
Order No.:
 67S1167
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224YS73100
Available: 3,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.52 € *
1 pcs.
0.5200 €
50 pcs.
0.4617 €
100 pcs.
0.3725 €
500 pcs.
0.3391 €
2000 pcs.
0.3058 €
0.29 cd
586 nm
0.25 cd
30 mA
2.4 V
yellow
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
LED, SMD, 2214, yellow, 590 nm, 0.23 to 0.33 cd, 120°, 150224YS73100A
LED, SMD, 2214, yellow, 590 nm, 0.23 to 0.33 cd, 120°, 150224YS73100A
Order No.:
 67S1168
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224YS73100A
Available: 3,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.22 € *
1 pcs.
0.2154 €
10 pcs.
0.1999 €
100 pcs.
0.1916 €
500 pcs.
0.1833 €
1000 pcs.
0.1666 €
0.33 cd
590 nm
0.23 cd
20 mA
2.4 V
yellow
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
LED, SMD, 2214, blue, 456 nm, 0.116 to 0.22 cd, 120°, 150224BS73100
LED, SMD, 2214, blue, 456 nm, 0.116 to 0.22 cd, 120°, 150224BS73100
Order No.:
 67S1160
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150224BS73100
Available: 2,940 pcs. Leadtime: 8 Weeks **
Total Price: 0.52 € *
1 pcs.
0.5200 €
50 pcs.
0.4617 €
100 pcs.
0.3725 €
500 pcs.
0.3391 €
2000 pcs.
0.3058 €
0.22 cd
456 nm
0.116 cd
30 mA
3.4 V
blue
-40 °C
2214
120 °
1.4 mm
2 mm
clear
SMD
85 °C
