150040SS73220 | Würth Elektronik eiSos

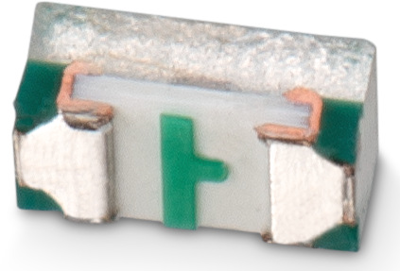

LED, SMD, 1005, red, 645 nm, 0.07 to 0.09 cd, 120°, 150040SS73220

Order No.: 67S1062
EAN: 4099889280852
MPN:
150040SS73220
Series: WL-SMCC
Würth Elektronik eiSos
default L
Image may differ
Print
Key Specification:
Assembly SMD
Enclosure 1005
Colour of the LED red
Light intensity min. 0.07 cd
Show 17 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4891 € *
Available: 3,000 pcs.
Leadtime: 18 Weeks **
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4891 €
10 pcs.
0.4355 €
50 pcs.
0.4308 €
250 pcs.
0.3844 €
500 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Radiation angle 120 °
Width 0.5 mm
On-State Voltage 2.4 V
Forward Current 20 mA
Colour of the LED red
Enclosure 1005
Length 1 mm
Light intensity min. 0.07 cd
Light intensity typ. 0.09 cd
Lens clear
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Wavelength 645 nm
Show similar products 0
Logistics
Country of origin TW
Customs tariff number 85414100
MSL MSL 3
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Light intensity typ.
Wavelength
Unit:
Light intensity min.
Enclosure
Forward Current
Unit:
Width
Unit:
Length
Unit:
On-State Voltage
Unit:
Colour of the LED
min. operating temperature
Radiation angle
Lens
Assembly
max. operating temperature
1 item in 17 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Light intensity typ.
Wavelength
Light intensity min.
Enclosure
Forward Current
Width
Length
On-State Voltage
Colour of the LED
min. operating temperature
Radiation angle
Lens
Assembly
max. operating temperature
LED, SMD, 1005, blue, 470 nm, 0.045 to 0.15 cd, 120°, 150040BS73240
LED, SMD, 1005, blue, 470 nm, 0.045 to 0.15 cd, 120°, 150040BS73240
Order No.:
 67S1057
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040BS73240
Available: 4,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.30 € *
1 pcs.
0.2999 €
10 pcs.
0.2785 €
100 pcs.
0.2689 €
500 pcs.
0.2392 €
1000 pcs.
0.2106 €
0.15 cd
470 nm
0.045 cd
1005
30 mA
0.5 mm
1 mm
3.3 V
blue
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, red, 645 nm, 0.07 to 0.09 cd, 120°, 150040SS73220
LED, SMD, 1005, red, 645 nm, 0.07 to 0.09 cd, 120°, 150040SS73220
Order No.:
 67S1062
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040SS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.49 € *
1 pcs.
0.4891 €
10 pcs.
0.4355 €
50 pcs.
0.4308 €
250 pcs.
0.3844 €
500 pcs.
0.3451 €
0.09 cd
645 nm
0.07 cd
1005
20 mA
0.5 mm
1 mm
2.4 V
red
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1608, green, 575 nm, 0.03 to 0.06 cd, 120°, 150060VS73220
LED, SMD, 1608, green, 575 nm, 0.03 to 0.06 cd, 120°, 150060VS73220
Order No.:
 67S1070
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150060VS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.33 € *
1 pcs.
0.3308 €
10 pcs.
0.3106 €
100 pcs.
0.2987 €
500 pcs.
0.2666 €
1000 pcs.
0.2344 €
0.06 cd
575 nm
0.03 cd
1608
20 mA
0.8 mm
1.6 mm
2.4 V
green
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, green, 572 nm, 0.03 to 0.05 cd, 120°, 150040VS73240
LED, SMD, 1005, green, 572 nm, 0.03 to 0.05 cd, 120°, 150040VS73240
Order No.:
 67S1064
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040VS73240
Available: 4,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.30 € *
1 pcs.
0.2999 €
10 pcs.
0.2785 €
100 pcs.
0.2689 €
500 pcs.
0.2392 €
1000 pcs.
0.2106 €
0.05 cd
572 nm
0.03 cd
1005
30 mA
0.5 mm
1 mm
2.5 V
green
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, green, 515 nm, 0.43 to 0.8 cd, 120°, 150040GS73240
LED, SMD, 1005, green, 515 nm, 0.43 to 0.8 cd, 120°, 150040GS73240
Order No.:
 67S1059
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040GS73240
Available: 4,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.30 € *
1 pcs.
0.2999 €
10 pcs.
0.2785 €
100 pcs.
0.2689 €
500 pcs.
0.2392 €
1000 pcs.
0.2106 €
0.8 cd
515 nm
0.43 cd
1005
30 mA
0.5 mm
1 mm
3.3 V
green
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, red, 632 nm, 0.045 to 0.11 cd, 120°, 150040RS73220
LED, SMD, 1005, red, 632 nm, 0.045 to 0.11 cd, 120°, 150040RS73220
Order No.:
 67S1060
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040RS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.49 € *
1 pcs.
0.4891 €
10 pcs.
0.4355 €
50 pcs.
0.4308 €
250 pcs.
0.3844 €
500 pcs.
0.3451 €
0.11 cd
632 nm
0.045 cd
1005
20 mA
0.5 mm
1 mm
2.4 V
red
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, amber, 609 nm, 0.045 to 0.08 cd, 120°, 150040AS73220
LED, SMD, 1005, amber, 609 nm, 0.045 to 0.08 cd, 120°, 150040AS73220
Order No.:
 67S1055
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040AS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.49 € *
1 pcs.
0.4891 €
10 pcs.
0.4355 €
50 pcs.
0.4308 €
250 pcs.
0.3844 €
500 pcs.
0.3451 €
0.08 cd
609 nm
0.045 cd
1005
20 mA
0.5 mm
1 mm
2.4 V
amber
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, red, 630 nm, 0.03 to 0.1 cd, 120°, 150040RS73240
LED, SMD, 1005, red, 630 nm, 0.03 to 0.1 cd, 120°, 150040RS73240
Order No.:
 67S1061
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040RS73240
Available: 4,000 pcs. Leadtime: 8 Weeks **
Total Price: 0.30 € *
1 pcs.
0.2999 €
10 pcs.
0.2785 €
100 pcs.
0.2689 €
500 pcs.
0.2392 €
1000 pcs.
0.2106 €
0.1 cd
630 nm
0.03 cd
1005
30 mA
0.5 mm
1 mm
2.4 V
red
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, green, 520 nm, 0.56 to 0.75 cd, 120°, 150040GS73220
LED, SMD, 1005, green, 520 nm, 0.56 to 0.75 cd, 120°, 150040GS73220
Order No.:
 67S1058
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040GS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.49 € *
1 pcs.
0.4891 €
10 pcs.
0.4355 €
50 pcs.
0.4308 €
250 pcs.
0.3844 €
500 pcs.
0.3451 €
0.75 cd
520 nm
0.56 cd
1005
20 mA
0.5 mm
1 mm
3.9 V
green
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, yellow, 591 nm, 0.045 to 0.07 cd, 120°, 150040YS73220
LED, SMD, 1005, yellow, 591 nm, 0.045 to 0.07 cd, 120°, 150040YS73220
Order No.:
 67S1065
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040YS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.49 € *
1 pcs.
0.4891 €
10 pcs.
0.4355 €
50 pcs.
0.4308 €
250 pcs.
0.3844 €
500 pcs.
0.3451 €
0.07 cd
591 nm
0.045 cd
1005
20 mA
0.5 mm
1 mm
2.4 V
yellow
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, green, 575 nm, 0.028 to 0.06 cd, 120°, 150040VS73220
LED, SMD, 1005, green, 575 nm, 0.028 to 0.06 cd, 120°, 150040VS73220
Order No.:
 67S1063
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040VS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.49 € *
1 pcs.
0.4891 €
10 pcs.
0.4355 €
50 pcs.
0.4308 €
250 pcs.
0.3844 €
500 pcs.
0.3451 €
0.06 cd
575 nm
0.028 cd
1005
20 mA
0.5 mm
1 mm
2.4 V
green
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, yellow, 595 nm, 0.03 to 0.07 cd, 120°, 150040YS73240
LED, SMD, 1005, yellow, 595 nm, 0.03 to 0.07 cd, 120°, 150040YS73240
Order No.:
 67S1066
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040YS73240
Available: 2,800 pcs. Leadtime: 8 Weeks **
Total Price: 0.30 € *
1 pcs.
0.2999 €
10 pcs.
0.2785 €
100 pcs.
0.2689 €
500 pcs.
0.2392 €
1000 pcs.
0.2106 €
0.07 cd
595 nm
0.03 cd
1005
30 mA
0.5 mm
1 mm
2.4 V
yellow
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1608, blue, 465 nm, 0.045 to 0.17 cd, 120°, 150060BS73220
LED, SMD, 1608, blue, 465 nm, 0.045 to 0.17 cd, 120°, 150060BS73220
Order No.:
 67S1067
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150060BS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.33 € *
1 pcs.
0.3308 €
10 pcs.
0.3106 €
100 pcs.
0.2987 €
500 pcs.
0.2666 €
1000 pcs.
0.2344 €
0.17 cd
465 nm
0.045 cd
1608
20 mA
0.8 mm
1.6 mm
3.9 V
blue
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1608, yellow, 591 nm, 0.03 to 0.1 cd, 120°, 150060YS73220
LED, SMD, 1608, yellow, 591 nm, 0.03 to 0.1 cd, 120°, 150060YS73220
Order No.:
 67S1071
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150060YS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.33 € *
1 pcs.
0.3308 €
10 pcs.
0.3106 €
100 pcs.
0.2987 €
500 pcs.
0.2666 €
1000 pcs.
0.2344 €
0.1 cd
591 nm
0.03 cd
1608
20 mA
0.8 mm
1.6 mm
2.4 V
yellow
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1608, green, 520 nm, 0.36 to 0.7 cd, 120°, 150060GS73220
LED, SMD, 1608, green, 520 nm, 0.36 to 0.7 cd, 120°, 150060GS73220
Order No.:
 67S1068
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150060GS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.33 € *
1 pcs.
0.3308 €
10 pcs.
0.3106 €
100 pcs.
0.2987 €
500 pcs.
0.2666 €
1000 pcs.
0.2344 €
0.7 cd
520 nm
0.36 cd
1608
20 mA
0.8 mm
1.6 mm
3.9 V
green
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1608, red, 632 nm, 0.03 to 0.09 cd, 120°, 150060RS73220
LED, SMD, 1608, red, 632 nm, 0.03 to 0.09 cd, 120°, 150060RS73220
Order No.:
 67S1069
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150060RS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.33 € *
1 pcs.
0.3308 €
10 pcs.
0.3106 €
100 pcs.
0.2987 €
500 pcs.
0.2666 €
1000 pcs.
0.2344 €
0.09 cd
632 nm
0.03 cd
1608
20 mA
0.8 mm
1.6 mm
2.4 V
red
-40 °C
120 °
clear
SMD
85 °C
LED, SMD, 1005, blue, 465 nm, 0.045 to 0.14 cd, 120°, 150040BS73220
LED, SMD, 1005, blue, 465 nm, 0.045 to 0.14 cd, 120°, 150040BS73220
Order No.:
 67S1056
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 150040BS73220
Available: 3,000 pcs. Leadtime: 18 Weeks **
Total Price: 0.49 € *
1 pcs.
0.4891 €
10 pcs.
0.4355 €
50 pcs.
0.4308 €
250 pcs.
0.3844 €
500 pcs.
0.3451 €
0.14 cd
465 nm
0.045 cd
1005
20 mA
0.5 mm
1 mm
3.9 V
blue
-40 °C
120 °
clear
SMD
85 °C
*incl. VAT plus shipping costs
**Subject to prior sale
Images may differ
