7447785004 | Würth Elektronik eiSos

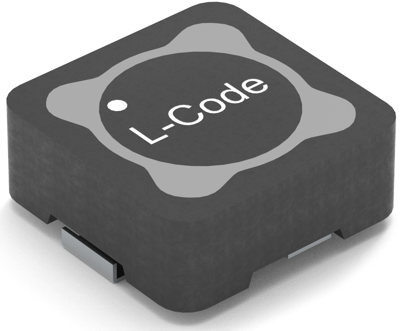

Power choke, SMD 6033, 4.7 µH, 2.2 A, 7447785004

Order No.: 73D1903
EAN: 4099889307313
MPN:
7447785004
Series: WE-PD
Würth Elektronik eiSos
default L
Image may differ
Unit Price (€ / pc.)
2.4752 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
2.48 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
*incl. VAT plus shipping costs
**Subject to prior sale

Characteristics

  • AEC - Q 200
  • Highest possible saturation current based on ferrite
  • Operating temperature: -40°C to +125°C / +150 °C
  • Suitable for switching frequency up to 10 MHz
  • WE-PD Performance: The MnZn core enhances saturation behavior and reduces RDC for maximum efficiency.
  • WE-PD Robust: The plastic base results in better mechanical stability and higher efficiency.
  • WE-PD: In comparison to other manufacturers in the market, it consistently offers low-loss material, tight tolerances, and high saturation performance

Application:

  • Switch mode power supplies from 0.1 W up to 300 W
  • Integrated DC/DC converter
  • Ideal for switch mode power supplies with extreme high efficiency (>95%)
Technical specifications
Version power inductor
Design SMD 6033
Width 6.2 mm
DC current 2.2 A
DC resistance 78 mΩ
Height 3.3 mm
Inductance 4.7 µH
Length 5.9 mm
Measuring frequency 53 MHz
Saturation current 2.5 A
Tolerance ±25 %
Logistics
Country of origin TH
Customs tariff number 85045000
MSL MSL 1
Original Packaging Reel with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Tolerance
Inductance
DC current
DC resistance
Design
Version
Width
Length
Height
1 item in 12 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Tolerance
Inductance
DC current
DC resistance
Design
Version
Width
Length
Height
Power choke, SMD 6033, 1 µH, 3.5 A, 7447785001
Order No.:
 73D1900
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785001
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
1 µH
3.5 A
39 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 3.3 µH, 2.8 A, 7447785003
Order No.:
 73D1902
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785003
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
3.3 µH
2.8 A
67 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 10 µH, 1.9 A, 744778510
Order No.:
 73D1905
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778510
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
10 µH
1.9 A
125 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 47 µH, 0.85 A, 7447785147
Order No.:
 73D1910
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785147
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±20 %
47 µH
0.85 A
600 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 15 µH, 1.6 A, 7447785115
Order No.:
 73D1906
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785115
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
15 µH
1.6 A
200 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 22 µH, 1.35 A, 7447785122
Order No.:
 73D1907
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785122
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
22 µH
1.35 A
250 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 27 µH, 0.9 A, 7447785127
Order No.:
 73D1908
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785127
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
27 µH
0.9 A
360 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 6.8 µH, 2.3 A, 7447785006
Order No.:
 73D1904
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785006
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
6.8 µH
2.3 A
100 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 2.2 µH, 2.9 A, 7447785002
Order No.:
 73D1901
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785002
Available: 40 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
2.2 µH
2.9 A
54 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 33 µH, 0.85 A, 7447785133
Order No.:
 73D1909
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785133
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
33 µH
0.85 A
400 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 4.7 µH, 2.2 A, 7447785004
Order No.:
 73D1903
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447785004
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
4.7 µH
2.2 A
78 mΩ
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
Power choke, SMD 6033, 100 µH, 0.65 A, 744778520
Order No.:
 73D1911
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778520
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
±25 %
100 µH
0.65 A
1.06 Ω
SMD 6033
power inductor
6.2 mm
5.9 mm
3.3 mm
