7447722473 | Würth Elektronik eiSos

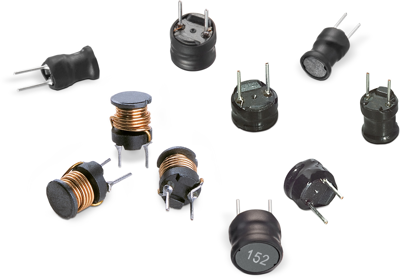

Choke, radial, 47000 µH, 0.06 A, 7447722473
Unit Price (€ / pc.)
0.8687 € *
Available: 33 pcs.
Available in 5 Days: 5,266 pcs.
Leadtime: 22 Weeks **
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8687 €
10 pcs.
0.8449 €
25 pcs.
0.8092 €
50 pcs.
0.7854 €
100 pcs.
0.7497 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- High saturation core material
- Maximum current up to 8.5 A
- Radial through-hole inductor
- Slim and miniature size
Application:
- Signal filtering
- Switches, switching power supply for small and medium voltage
- Power supply filter
- EMI filter
Technical specifications
| Design | radial | |
| Length | 7.8 mm | |
| Measuring frequency | 0.22 MHz | |
| DC resistance | 112 Ω | |
| Width | 7.8 mm | |
| Inductance | 47000 µH | |
| Saturation current | 0.07 A | |
| DC current | 0.06 A | |
| Version | wired inductor with wire winding | |
| Tolerance | ±5 % | |
| Height | 9.5 mm |
Download
Logistics
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85045000 |
| Original Packaging | Tray with 140 pieces |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
