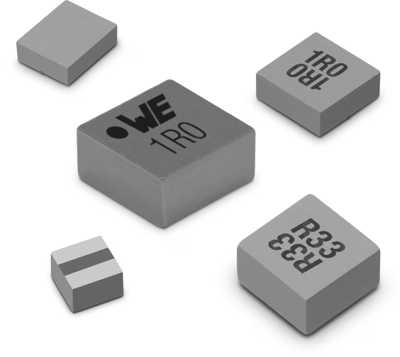

Power choke, SMD 3020HT, 1 µH, 3.2 A, 74438336010HT
SMT Power inductor, 74438336010HT, Würth Elektronik eiSos
The 74438336010HT is a SMT Power inductor with DC/DC Converters for high current power supplies and Field Programmable Gate Arrays (FPGA).
Features
- Magnetic iron alloy allows high rated currents
- Compact Design
- Magnetically shielded
- High current capability
- Low acoustic noise and low leakage flux noise
Applications
- Portable power like PDA, digital camera
- Mainboards/ graphic cards
- Battery powered devices
- Wireless communication devices
- Power supplies for smartphones, tablet PCs and other mobile devices
Version | power inductor | |
Design | SMD 3020HT | |
Width | 3.2 mm | |
DC current | 3.2 A | |
DC resistance | 32.8 mΩ | |
Height | 2 mm | |
Inductance | 1 µH | |
Length | 3.2 mm | |
Measuring frequency | 67 MHz | |
Tolerance | ±20 % |
Country of origin | KR |
Customs tariff number | 85045000 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
