74437346047 | Würth Elektronik eiSos

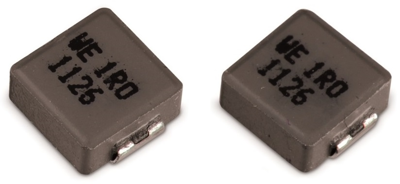

Power choke, SMD 7030, 4.7 µH, 3.8 A, 74437346047
Unit Price (€ / pc.)
2.4395 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4395 €
10 pcs.
2.3205 €
50 pcs.
2.2491 €
100 pcs.
2.0587 €
500 pcs.
1.9754 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Compact Design
- Handles high transient current spikes
- High current capability and handles high transient current spikes
- Magnetical shielded
- No acoustic noise and no leakage field
- Operating temperature -40°C to +125°C
Application:
- DC/DC Converters for high current power supplies
- DC/DC Converters for Field Programmable Gate Arrays (FPGA)
- POL Converters
- Portable power like PDA, digital camera
- Mainboards/ graphic cards
- CPU/ RAM
- Battery powered devices
Technical specifications
| Version | power inductor | |
| Design | SMD 7030 | |
| Width | 6.6 mm | |
| DC current | 3.8 A | |
| DC resistance | 40 mΩ | |
| Height | 2.8 mm | |
| Inductance | 4.7 µH | |
| Length | 7.3 mm | |
| Measuring frequency | 22 MHz | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
