7443733448010 | Würth Elektronik eiSos

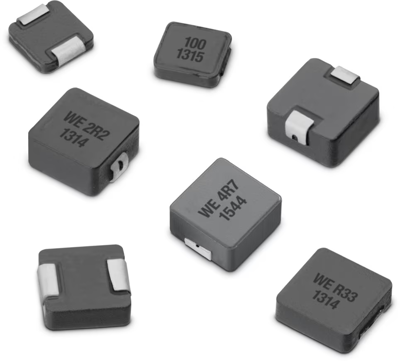

Power choke, SMD 5020HT, 1 µH, 7.4 A, 7443733448010
SMT Power inductor, 7443733448010, Würth Elektronik eiSos
The 7443733448010 is a SMT Power inductor with DC/DC Converters for high current power supplies and Field Programmable Gate Arrays (FPGA).
Features
- Compact Design
- Magnetically shielded
- High current capability
- Handles high transient current spikes
- No acoustic noise and no leakage field
Applications
- Portable power like PDA, digital camera
- Mainboards/ graphic cards
- Battery powered devices
Version | power inductor | |
Design | SMD 5020HT | |
Width | 5.2 mm | |
DC current | 7.4 A | |
DC resistance | 17 mΩ | |
Height | 1.8 mm | |
Inductance | 1 µH | |
Length | 5.7 mm | |
Measuring frequency | 62 MHz | |
Tolerance | ±20 % |
Country of origin | CN |
Customs tariff number | 85045000 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
