74272151 | Würth Elektronik eiSos

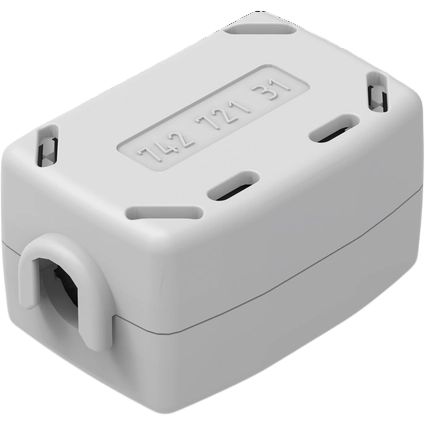

Snap ferrite core, cable Ø 12-15 mm, (L x Ø x H) 48.4 x 35 x 38.8 mm, 74272151
Unit Price (€ / pc.)
17.8500 € *
Available: 24 pcs.
Available in 5 Days: 2,964 pcs. - if ordered today
Total Price:
17.85 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8500 €
10 pcs.
13.3875 €
100 pcs.
11.9000 €
250 pcs.
11.1563 €
500 pcs.
10.7100 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD ferrite bead, 74272151, Würth Elektronik eiSos
Low frequency specialist with reliable flexible cable fixing, developed in-house. Perfect for applications with varying cable diameter, Especially for applications in the low frequency range from 300 kHz to 30 MHz.
Features
- Prefixing cable system facilitates the cable assembling process
- Cable clamping protection
- Internal security locking system with key technology WE-STAR-KEY (safety key) prevents unauthorized removing from the cable
- One key in each sample shipment
Applications
- Suppression of electronic ballasts (i.e. neon tube) in the lighting industry
- Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories
- Fastening for round cables with diameter 2.0 mm to 25.0 mm or if winded more turns through the ferrite
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable diameter | 12-15 mm | |
| diameter | 35 mm | |
| Length | 48.4 mm | |
| Height | 38.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 1 piece |
| Customs tariff number | 85480090 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
