211195908 | WKK

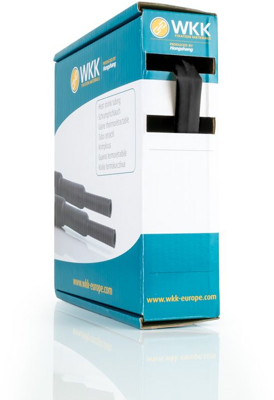

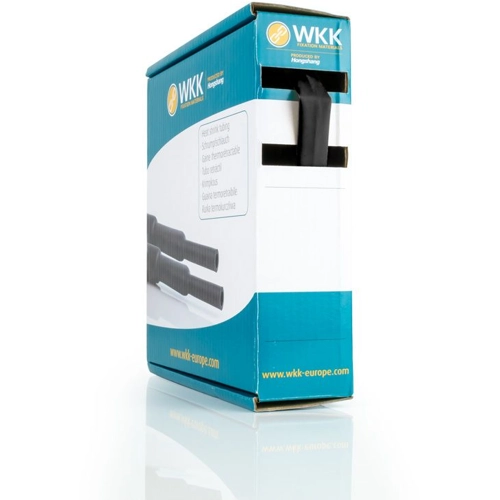

Heatshrink tubing, 2:1, (12.7/6.4 mm), PO, crosslinked, black, 211195908
Order No.: 91F9869
EAN: 4099891965945
MPN:
211195908
Unit Price (€ / pck.)
11.6739 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
11.67 € *
Price list
Quantity
Price per unit*
1 pck.
11.6739 €
5 pck.
10.5077 €
10 pck.
9.7342 €
25 pck.
8.9488 €
50 pck.
7.7826 €
*incl. VAT plus shipping costs
Subject to prior sale
Thin-walled shrink tubing, 211195908, WKK
The thin-walled H-2(Z) heat-shrink tubing is the most commonly used heat-shrink tubing and is used for a wide range of applications. The low shrink temperature, the flexibility of this tubing and the mechanical strength ensure that H-2(Z) is frequently used in the communications, electronics and automotive industries.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Shrinking temperature | 70 °C | |
| contains glue inside | No | |
| Inner diameter before shrinkage | 12.7 mm | |
| Wall thickness | 0.65 mm | |
| Length | 8 m | |
| Inner diameter after shrinkage | 6.4 mm | |
| min. operating temperature | -55 °C | |
| Material | PO, crosslinked | |
| max. operating temperature | 125 °C | |
| Shrinking rate | 2:1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39173900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
