10066413 | WISKA

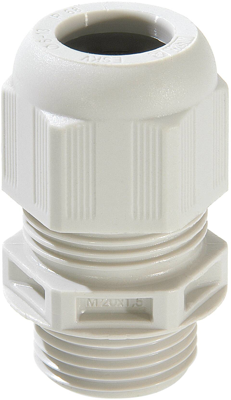

Cable gland, with short connection thread, M25, 29 mm, IP68/IP69, light gray, 10066413
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Cable gland, 10066413, WISKA
Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 with a moulded sealing lip, size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.
Technical specifications
| Colour | light gray | |
| Degree of protection (IP) | IP68/IP69 | |
| Length | 47 mm | |
| Product type | cable gland | |
| Version | with short connection thread | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| spanner size | 29 mm | |
| max. operating temperature | 100 °C | |
| Thread size | M25 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
