SNFPW033308HD4KSSD | Wima
FKP film capacitor, 330 nF, ±10 %, 3 kV (DC), PP, 48.5 mm, SNFPW033308HD4KSSD
Order No.: 51D1927
EAN: 4099879858092
MPN:
SNFPW033308HD4KSSD
Snubber FKP 0.33 µF 3000 VDC
Series: Snubber FKP
Unit Price (€ / pc.)
21.9079 € *
Standard delivery time from the manufacturer is: On Request

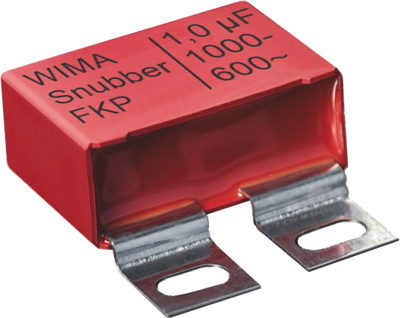

Film capacitor, SNFPW033308HD4KSSD, WIMA
The SNFPW033308HD4KSSD is a snubber capacitor for high power conversion and is based on decades of experience with Polypropylene pulse capacitors. This product electrical performance as well as the manifold number of connecting options makes the WIMA Snubber technology unique.
Features
- High pulse duty
- Self-healing
- Aluminium foil and single-sided metallized plastic film
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- IGBT-applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 27 mm | |
| Rated voltage (AC) | 700 V | |
| Rated voltage (DC) | 3 kV | |
| Number of pins | 4 | |
| Length | 56 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Height | 37.5 mm | |
| Capacity | 330 nF | |
| Tolerance | ±10 % | |
| Grid | 48.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
