SMDTC04150VA00KR00 | Wima

Film capacitor, 1.5 µF, ±10 %, 63 V (DC), PET, SMDTC04150VA00KR00

Order No.: 50D5199
EAN: 4099879858047
MPN:
SMDTC04150VA00KR00
SMD-PET 1.5 µF 63 VDC
Series: SMD-PET

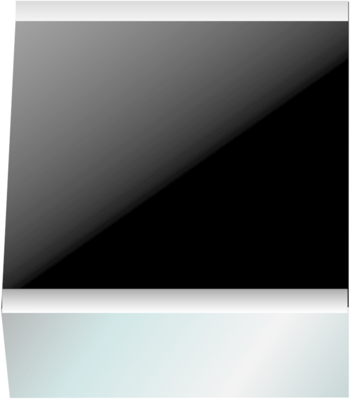

SMDTC04150VA00KR00 Wima Film Capacitors Image 1

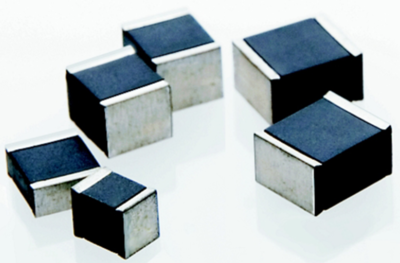

SMDTC04150VA00KR00 Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
839.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
775 pcs.
1.0829 €

Film capacitor, SMDTC04150VA00KR00, WIMA

The SMDTC04150VA00KR00 is a SMD capacitor. This product is a safe protection of the capacitor element against mechanical and thermal stresses during processing and operation.

Features

  • Self-healing
  • Suitable for lead-free soldering
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case, UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Filter Property Value
Rated voltage (AC) 40 V
Rated voltage (DC) 63 V
Capacity 1.5 µF
Length 10.2 mm
Width 7.6 mm
Design SMD 4030
Number of pins 2
max. operating temperature 125 °C
Height 5 mm
min. operating temperature -55 °C
Tolerance ±10 %
Dielectric material PET
Logistics
Property Value
Customs tariff number 85322500
Original Packaging Reel with 775 pieces
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
