SMDTC02150QA00MP00 | Wima

Film capacitor, 15 nF, ±20 %, 63 V (DC), PET, SMDTC02150QA00MP00

Order No.: 50D5002
EAN: 4099879858009
MPN:
SMDTC02150QA00MP00
SMD-PET 0.015 µF 63 VDC
Series: SMD-PET

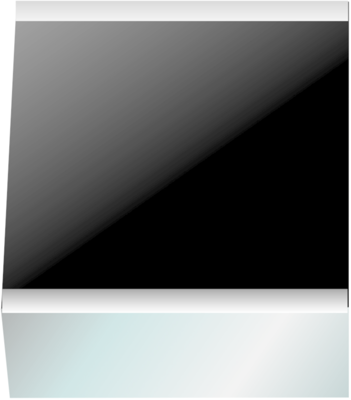

SMDTC02150QA00MP00 Wima Film Capacitors Image 1

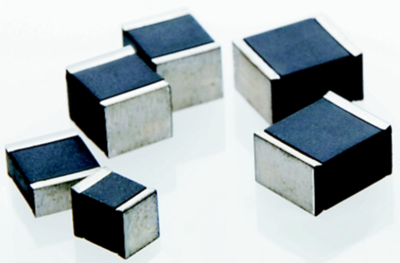

SMDTC02150QA00MP00 Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
172.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
0.3451 €

Film capacitor, SMDTC02150QA00MP00, WIMA

The SMDTC02150QA00MP00 is a SMD capacitor. This product is a safe protection of the capacitor element against mechanical and thermal stresses during processing and operation.

Features

  • Self-healing
  • Suitable for lead-free soldering
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case, UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Filter Property Value
Rated voltage (AC) 40 V
Rated voltage (DC) 63 V
Capacity 15 nF
Length 5.7 mm
Width 5.1 mm
Design SMD 2220
Number of pins 2
max. operating temperature 125 °C
Height 3.5 mm
min. operating temperature -55 °C
Tolerance ±20 %
Dielectric material PET
Logistics
Property Value
Customs tariff number 85322500
Original Packaging Reel with 500 pieces
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
