MKY22W21004B00MSSD | Wima
MKP suppression capacitor, 10 nF, ±20 %, 300 V (AC), PP, 15 mm, MKY22W21004B00MSSD
Unit Price (€ / pc.)
0.5712 € *
Available in 4 Days: 2,937 pcs. - if ordered today
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.4046 €
100 pcs.
0.3451 €
500 pcs.
0.3094 €
1000 pcs.
0.2761 €
*incl. VAT plus shipping costs
Subject to prior sale

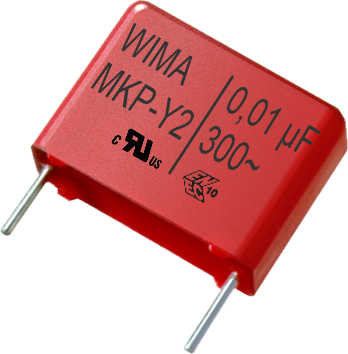

Film capacitor, MKY22W21004B00MSSD, WIMA
The MKY22W21004B00MSSD is a RFI capacitor connected between phase and neutral or phase and phase conductors. This product is resin impregnated under vacuum and encapsulated with self-extinguishing cast resin,the metallized paper is neither actively nor passively flammable.
Features
- Reliable self-healing
- High degree of interference suppression due to good attenuation and low ESR
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
- Vacuum-deposited
- Tinned wire
Applications
- Capacitors connected to the mains between phase or neutral and earthed casing
- By-passing of the basic or supplementary insulation, pulse peak voltage < 5 kV
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 5 mm | |
| Number of pins | 2 | |
| Tolerance | ±20 % | |
| Capacity | 10 nF | |
| Grid | 15 mm | |
| Rated voltage (AC) | 300 V | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Design | radial | |
| Interference suppression class | Y2 | |
| Height | 11 mm | |
| Length | 18 mm | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
