MKS4O131005D00KSSD | Wima
MKS film capacitor, 100 nF, ±10 %, 1 kV (DC), PET, 22.5 mm, MKS4O131005D00KSSD
Order No.: 43D412
EAN: 4099879818768
MPN:
MKS4O131005D00KSSD
MKS 4 0.1µF/1000VDC 10% RM22.5
Series: MKS 4
Unit Price (€ / pc.)
1.8683 € *
Available: 724 pcs.
Available in 4 Days: 2 pcs. - if ordered today
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8683 €
10 pcs.
1.1662 €
50 pcs.
1.0234 €
250 pcs.
0.8925 €
760 pcs.
0.8092 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4O131005D00KSSD, WIMA
The MKS4O131005D00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 1 kV | |
| Rated voltage (AC) | 400 V | |
| Tolerance | ±10 % | |

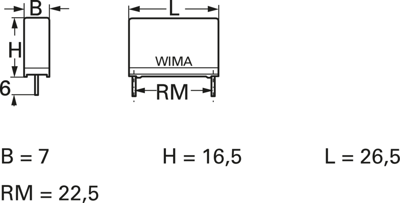

| Design | radial | |
| Width | 7 mm | |
| Height | 16.5 mm | |
| Dielectric material | PET | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Number of pins | 2 | |
| Length | 26.5 mm | |
| Capacity | 100 nF | |
| Grid | 22.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
| Original Packaging | Bulk with 760 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
