MKS4O122204B00KSSD | Wima
MKS film capacitor, 22 nF, ±10 %, 1 kV (DC), PET, 15 mm, MKS4O122204B00KSSD
Order No.: 43D404
EAN: 4099879818737
MPN:
MKS4O122204B00KSSD
MKS 4 0.022µF/1000VDC 10% RM15
Series: MKS 4
Unit Price (€ / pc.)
1.5470 € *
Available: 1,731 pcs.
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5470 €
10 pcs.
0.9639 €
50 pcs.
0.8449 €
250 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4O122204B00KSSD, WIMA
The MKS4O122204B00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

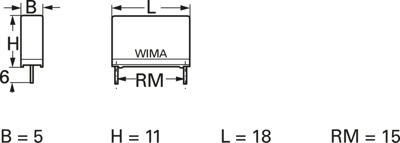

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 5 mm | |
| Rated voltage (AC) | 400 V | |
| Rated voltage (DC) | 1 kV | |
| Number of pins | 2 | |
| Length | 18 mm | |
| Design | radial | |
| Dielectric material | PET | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Height | 11 mm | |
| Capacity | 22 nF | |
| Tolerance | ±10 % | |
| Grid | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 2,400 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
