MKS4J034706A00KSSD | Wima
MKS film capacitor, 470 nF, ±10 %, 630 V (DC), PET, 27.5 mm, MKS4J034706A00KSSD
Order No.: 43D390
EAN: 4099879818690
MPN:
MKS4J034706A00KSSD
MKS 4 0.47µF/630VDC 10% RM27.5
Series: MKS 4
Unit Price (€ / pc.)
3.1416 € *
Available: 167 pcs.
Available in 4 Days: 1,409 pcs. - if ordered today
Total Price:
3.14 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1416 €
10 pcs.
1.9635 €
50 pcs.
1.7136 €
567 pcs.
1.3685 €
1134 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4J034706A00KSSD, WIMA
The MKS4J034706A00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

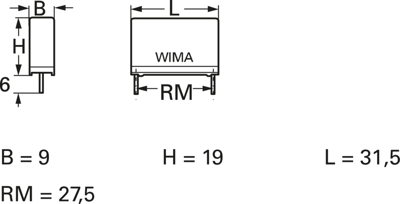

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 470 nF | |
| Length | 31.5 mm | |
| Rated voltage (AC) | 400 V | |
| Height | 19 mm | |
| Design | radial | |
| Grid | 27.5 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Dielectric material | PET | |
| Tolerance | ±10 % | |
| Width | 9 mm | |
| Rated voltage (DC) | 630 V | |
| Number of pins | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 567 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
