MKS4J034705G00KSSD | Wima

MKS film capacitor, 470 nF, ±10 %, 630 V (DC), PET, 22.5 mm, MKS4J034705G00KSSD

Order No.: 49D5742
EAN: 4099879857521
MPN:
MKS4J034705G00KSSD
MKS 4 0.47 µF 630 VDC
Series: MKS 4
MKS4J034705G00KSSD Wima Film Capacitors Image 1
MKS4J034705G00KSSD Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.1662 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
230.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
198 pcs.
1.1662 €

Film capacitor, MKS4J034705G00KSSD, WIMA

The MKS4J034705G00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Filter Property Value

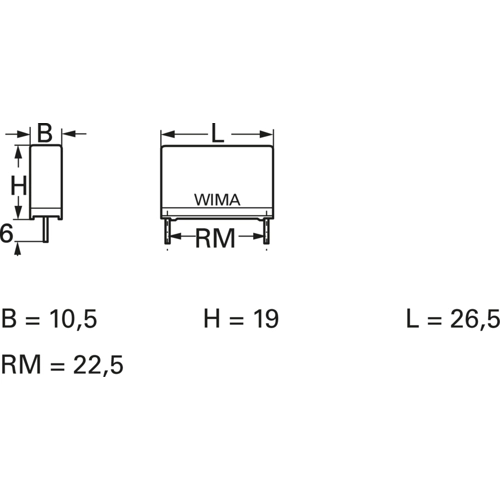

Grid 22.5 mm
Tolerance ±10 %
Width 10.5 mm
max. operating temperature 125 °C
Dielectric material PET
Rated voltage (DC) 630 V
Length 26.5 mm
Height 19 mm
Design radial
Number of pins 2
Rated voltage (AC) 400 V
min. operating temperature -55 °C
Capacity 470 nF
Logistics
Property Value
Customs tariff number 85322500
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
