MKS4J031504D00KSSD | Wima

MKS film capacitor, 150 nF, ±10 %, 630 V (DC), PET, 15 mm, MKS4J031504D00KSSD

Order No.: 49D5629
EAN: 4099879857491
MPN:
MKS4J031504D00KSSD
MKS 4 0.15 µF 630 VDC
Series: MKS 4
MKS4J031504D00KSSD Wima Film Capacitors Image 1
MKS4J031504D00KSSD Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.5236 € *
Available in 4 Days: 22 pcs. - if ordered today
Total Price:
167.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
320 pcs.
0.5236 €

Film capacitor, MKS4J031504D00KSSD, WIMA

The MKS4J031504D00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Filter Property Value
Tolerance ±10 %

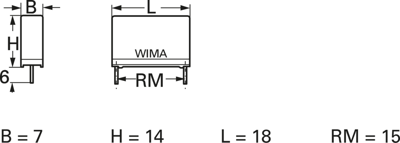

Grid 15 mm
Capacity 150 nF
Width 7 mm
Number of pins 2
min. operating temperature -55 °C
Rated voltage (AC) 400 V
Dielectric material PET
max. operating temperature 125 °C
Rated voltage (DC) 630 V
Length 18 mm
Design radial
Height 14 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85322500
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
