MKS4G023303C00KD00 | Wima

MKS film capacitor, 33 nF, ±10 %, 400 V (DC), PET, 10 mm, MKS4G023303C00KD00

Order No.: 49D4773
EAN: 4099879857408
MPN:
MKS4G023303C00KD00
MKS 4 0.033 µF 400 VDC
Series: MKS 4

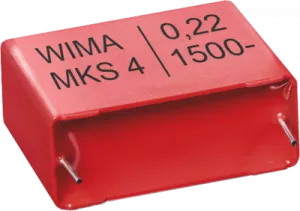

MKS4G023303C00KD00 Wima Film Capacitors Image 1

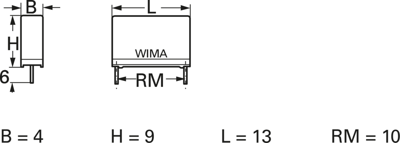

MKS4G023303C00KD00 Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.2737 € *
Available in 4 Days: 5,800 pcs. - if ordered today
Total Price:
396.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1450 pcs.
0.2737 €

Film capacitor, MKS4G023303C00KD00, WIMA

The MKS4G023303C00KD00 is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Grid 10 mm
Rated voltage (DC) 400 V
Design radial
Rated voltage (AC) 200 V
min. operating temperature -55 °C
Height 9 mm
Dielectric material PET
Tolerance ±10 %
Width 4 mm
Capacity 33 nF
Number of pins 2
max. operating temperature 125 °C
Length 13 mm
Logistics
Customs tariff number 85322500
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
