MKS4F042206A00KSSD | Wima
MKS film capacitor, 2.2 µF, ±10 %, 250 V (DC), PET, 27.5 mm, MKS4F042206A00KSSD
Order No.: 43D330
EAN: 4099879818553
MPN:
MKS4F042206A00KSSD
MKS 4 2.2µF/250VDC 10% RM27.5
Series: MKS 4
Unit Price (€ / pc.)
3.7366 € *
Available: 283 pcs.
Total Price:
3.74 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7366 €
10 pcs.
3.0345 €
50 pcs.
2.5466 €
150 pcs.
2.2015 €
500 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4F042206A00KSSD, WIMA
The MKS4F042206A00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

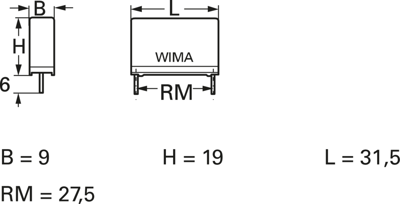

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 27.5 mm | |
| Height | 19 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Rated voltage (AC) | 160 V | |
| Rated voltage (DC) | 250 V | |
| Tolerance | ±10 % | |
| Width | 9 mm | |
| Capacity | 2.2 µF | |
| Design | radial | |
| Length | 31.5 mm | |
| Number of pins | 2 | |
| Dielectric material | PET |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
| Original Packaging | Bulk with 567 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
