MKS4F041005B00MB00 | Wima

MKS film capacitor, 1 µF, ±20 %, 250 V (DC), PET, 22.5 mm, MKS4F041005B00MB00

Order No.: 49D4374
EAN: 4099879857385
MPN:
MKS4F041005B00MB00
MKS 4 1.0 µF 250 VDC
Series: MKS 4
MKS4F041005B00MB00 Wima Film Capacitors Image 1
MKS4F041005B00MB00 Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.6902 € *
Available in 4 Days: 640 pcs. - if ordered today
Total Price:
441.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
640 pcs.
0.6902 €

Film capacitor, MKS4F041005B00MB00, WIMA

The MKS4F041005B00MB00 is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Rated voltage (DC) 250 V
Dielectric material PET
Capacity 1 µF

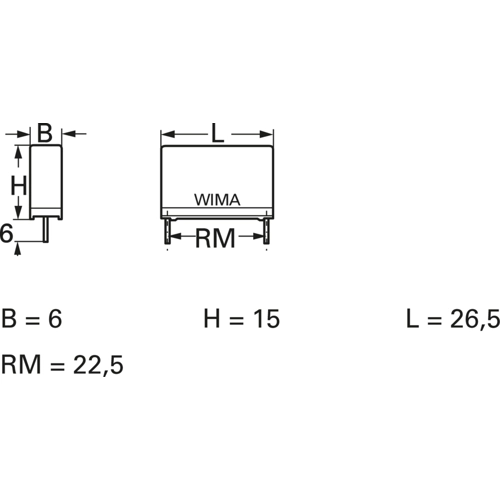

Grid 22.5 mm
Width 6 mm
Height 15 mm
Length 26.5 mm
Rated voltage (AC) 160 V
Design radial
min. operating temperature -55 °C
Tolerance ±20 %
max. operating temperature 125 °C
Number of pins 2
Logistics
Country of origin DE
Customs tariff number 85322500
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
