MKS4F041005B00KSSD | Wima
MKS film capacitor, 1 µF, ±10 %, 250 V (DC), PET, 22.5 mm, MKS4F041005B00KSSD
Order No.: 43D326
EAN: 4099879818546
MPN:
MKS4F041005B00KSSD
MKS 4 1.0µF/250VDC 10% RM22.5
Series: MKS 4
Unit Price (€ / pc.)
1.9397 € *
Available: 186 pcs.
Available in 4 Days: 1,109 pcs. - if ordered today
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9397 €
10 pcs.
1.2138 €
50 pcs.
1.0710 €
250 pcs.
0.9282 €
1000 pcs.
0.8092 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4F041005B00KSSD, WIMA
The MKS4F041005B00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

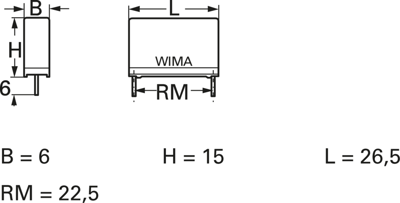

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 22.5 mm | |
| Tolerance | ±10 % | |
| Width | 6 mm | |
| max. operating temperature | 125 °C | |
| Dielectric material | PET | |
| Rated voltage (DC) | 250 V | |
| Length | 26.5 mm | |
| Height | 15 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (AC) | 160 V | |
| min. operating temperature | -55 °C | |
| Capacity | 1 µF |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
