MKS4F032202E00KSSD | Wima
MKS film capacitor, 220 nF, ±10 %, 250 V (DC), PET, 7.5 mm, MKS4F032202E00KSSD
Order No.: 42D9824
EAN: 4099879818157
MPN:
MKS4F032202E00KSSD
MKS 4 0.22µF/250VDC 10% RM7.5
Series: MKS 4
Unit Price (€ / pc.)
0.2975 € *
Available in 4 Days: 637 pcs. - if ordered today
Film capacitor, MKS4F032202E00KSSD, WIMA
The MKS4F032202E00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

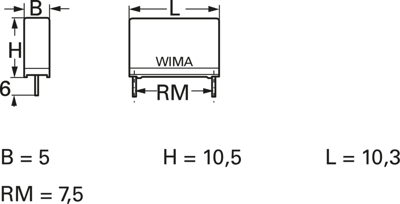

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 220 nF | |
| Length | 10.3 mm | |
| Rated voltage (AC) | 160 V | |
| Height | 10.5 mm | |
| Design | radial | |
| Grid | 7.5 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Dielectric material | PET | |
| Tolerance | ±10 % | |
| Width | 5 mm | |
| Rated voltage (DC) | 250 V | |
| Number of pins | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
