MKS4D042205B00KSSD | Wima
MKS film capacitor, 2.2 µF, ±10 %, 100 V (DC), PET, 22.5 mm, MKS4D042205B00KSSD
Order No.: 43D2666
EAN: 4099879818461
MPN:
MKS4D042205B00KSSD
MKS 4 2.2µF/100VDC 10% RM22.5
Unit Price (€ / pc.)
1.3328 € *
Available: 285 pcs.
Available in 4 Days: 1,542 pcs. - if ordered today
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
1.1424 €
100 pcs.
1.0115 €
250 pcs.
0.8806 €
1000 pcs.
0.7973 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4D042205B00KSSD, WIMA
The MKS4D042205B00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PET | |
| Capacity | 2.2 µF | |
| max. operating temperature | 125 °C | |

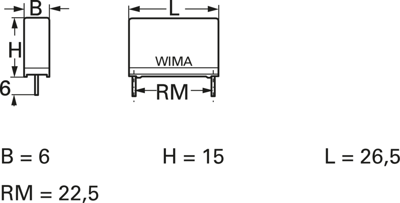

| Length | 26.5 mm | |
| min. operating temperature | -55 °C | |
| Height | 15 mm | |
| Width | 6 mm | |
| Grid | 22.5 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (DC) | 100 V | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 1,000 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
