MKS4C051005F00MSSD | Wima

MKS film capacitor, 10 µF, ±20 %, 63 V (DC), PET, 22.5 mm, MKS4C051005F00MSSD

Order No.: 49D2670
EAN: 4099879857255
MPN:
MKS4C051005F00MSSD
MKS 4 10.0 µF 63 VDC
Series: MKS 4
MKS4C051005F00MSSD Wima Film Capacitors Image 1
MKS4C051005F00MSSD Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
5.2360 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2360 €
5 pcs.
4.6648 €
25 pcs.
4.1888 €
75 pcs.
3.9389 €
150 pcs.
3.7366 €
*incl. VAT plus shipping costs
Subject to prior sale

Film capacitor, MKS4C051005F00MSSD, WIMA

The MKS4C051005F00MSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing

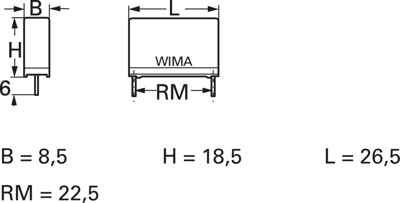

Technical specifications
Filter Property Value
Grid 22.5 mm
Tolerance ±20 %
Width 8.5 mm
max. operating temperature 125 °C
Dielectric material PET
Rated voltage (DC) 63 V
Length 26.5 mm
Height 18.5 mm
Design radial
Number of pins 2
Rated voltage (AC) 40 V
min. operating temperature -55 °C
Capacity 10 µF
Logistics
Property Value
Customs tariff number 85322500
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
