MKS4C051005F00KSSD | Wima

MKS film capacitor, 10 µF, ±10 %, 63 V (DC), PET, 22.5 mm, MKS4C051005F00KSSD

Order No.: 49D2664
EAN: 4099879857248
MPN:
MKS4C051005F00KSSD
MKS 4 10.0 µF 63 VDC
Series: MKS 4
MKS4C051005F00KSSD Wima Film Capacitors Image 1
MKS4C051005F00KSSD Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
2.0111 € *
Available in 4 Days: 36 pcs. - if ordered today
Total Price:
251.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
125 pcs.
2.0111 €

Film capacitor, MKS4C051005F00KSSD, WIMA

The MKS4C051005F00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Filter Property Value

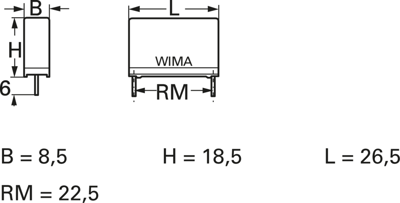

Design radial
Length 26.5 mm
Number of pins 2
Capacity 10 µF
Rated voltage (AC) 40 V
Rated voltage (DC) 63 V
Grid 22.5 mm
Dielectric material PET
max. operating temperature 125 °C
Tolerance ±10 %
min. operating temperature -55 °C
Width 8.5 mm
Height 18.5 mm
Logistics
Property Value
Customs tariff number 85322500
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
