MKS4C044705B00KSSD | Wima
MKS film capacitor, 4.7 µF, ±10 %, 63 V (DC), PET, 22.5 mm, MKS4C044705B00KSSD
Order No.: 43D226
EAN: 4099879818386
MPN:
MKS4C044705B00KSSD
MKS 4 4.7µF/63VDC 10% RM22.5
Series: MKS 4
Unit Price (€ / pc.)
3.3082 € *
Next delivery: 718 pcs. on 2025-08-06
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
10 pcs.
2.7608 €
100 pcs.
2.3681 €
250 pcs.
2.1539 €
1000 pcs.
1.9635 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4C044705B00KSSD, WIMA
The MKS4C044705B00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

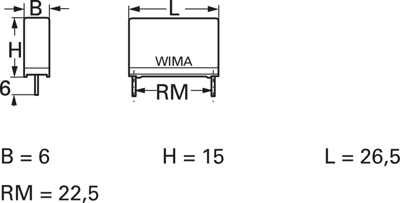

Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Height | 15 mm | |
| Design | radial | |
| Capacity | 4.7 µF | |
| Grid | 22.5 mm | |
| Length | 26.5 mm | |
| Rated voltage (DC) | 63 V | |
| Dielectric material | PET | |
| Rated voltage (AC) | 40 V | |
| Tolerance | ±10 % | |
| Width | 6 mm | |
| min. operating temperature | -55 °C | |
| Number of pins | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
